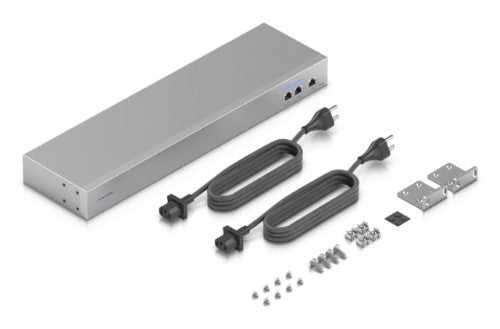

Ubiquiti UniFi WAN Switch RJ45 Gigabit Ethernet (10/100/1000) 1U Gray

20 Gbps, 1 x GbE RJ45, 3 x 10 GbE RJ45, Rack mount (1U), 18W, 442.4 x 120 x 43.7 mm

Description

10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Specifications

Management features
Reset button	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	1
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	1
Power connector	AC/DC
10G Ethernet (copper) ports quantity	3
Power cables quantity	2
Network
10G support	Yes
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	15 Mpps
Throughput	10 Gbit/s
Design
Rack mounting	Yes
Product colour	Gray
Reset button	Yes
Form factor	1U
LED indicators	Network, System
Housing material	SGCC
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	18 W
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	17.4" (442.4 mm)
Depth	4.72" (120 mm)
Height	1.72" (43.7 mm)
Weight	5.07 lbs (2.3 kg)
Packaging content
Rack mount kit	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging data
Rack mount kit	Yes
Cables included	Power
