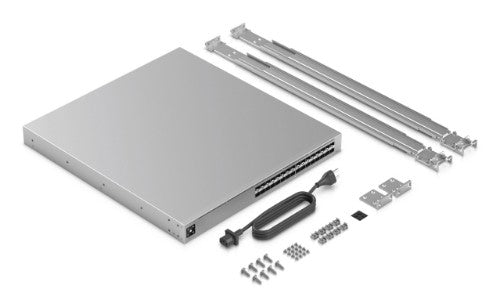

Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Gray

32 x 25G SFP28, 1.6 Tbps, 1.3" touchscreen, Rack mount (1U), SGCC steel, 442.4 x 43.7 x 480 mm

Description

Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

Specifications

Management features
Switch layer	L2/L3
Switch type	Managed
Reset button	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Power connector	AC/DC
SFP28 ports quantity	32
Network
Number of VLANs	1000
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Interface-based VLAN, Voice VLAN
IPv4 routes	256000
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	1600 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	8 MB
Static route	Yes
Forwarding rate	1200 Mpps
Throughput	800 Gbit/s
Number of VLANs	1000
Security
Loop protection	Yes
IGMP snooping	Yes
DHCP features	DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Reset button	Yes
Form factor	1U
Display type	LCM
Backlight display	Yes
Housing material	SGCC
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	200 W
Redundant power supply (RPS) support	Yes
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
Number of VLANs	1000
VLAN support	Yes
Virtual LAN features	Interface-based VLAN, Voice VLAN
Weight & dimensions
Width	17.4" (442.4 mm)
Depth	18.9" (480 mm)
Height	1.72" (43.7 mm)
Weight	15.4 lbs (7 kg)
Packaging content
Rack mount kit	Yes
Cables included	Power
Performance
Stackable	Yes
Packet buffer memory	8 MB
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Packaging data
Rack mount kit	Yes
Cables included	Power
