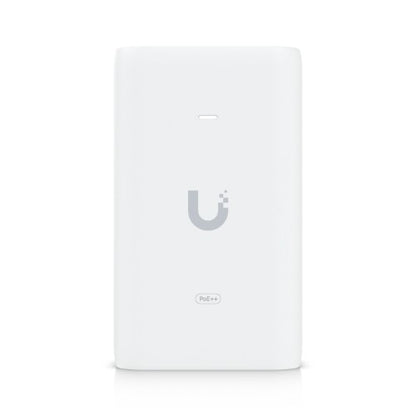

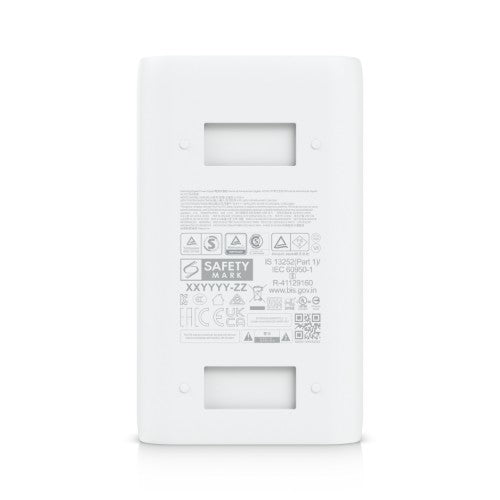

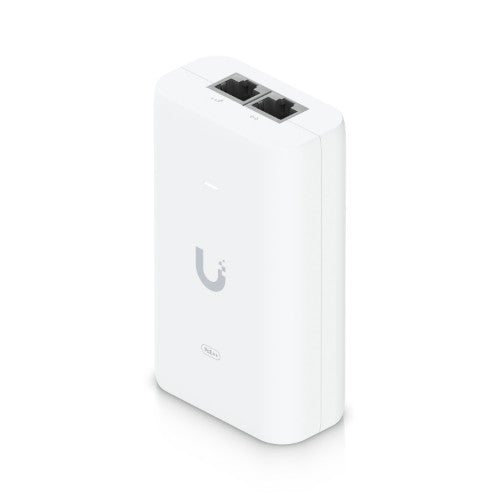

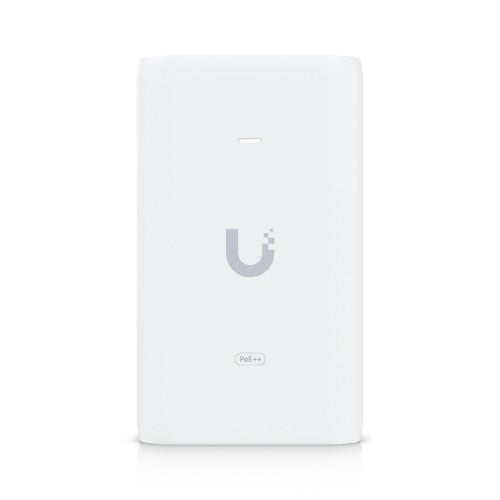

Ubiquiti UISP U-PoE++ Gigabit Ethernet 48 V

48V DC 1.25A, 100—240V AC, 50/60Hz, 65 kHz

Key Features

• Delivers up to 60W of PoE++
• Even more power for UA Hub, G4 PTZ, and other PoE++ devices
• Surge, peak pulse, and overcurrent protection

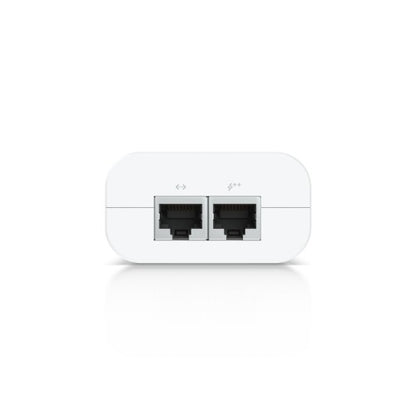

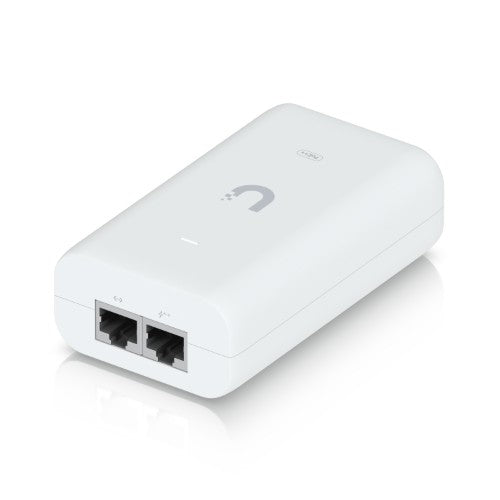

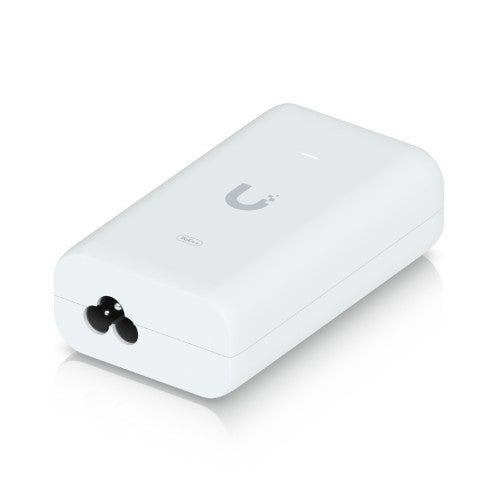

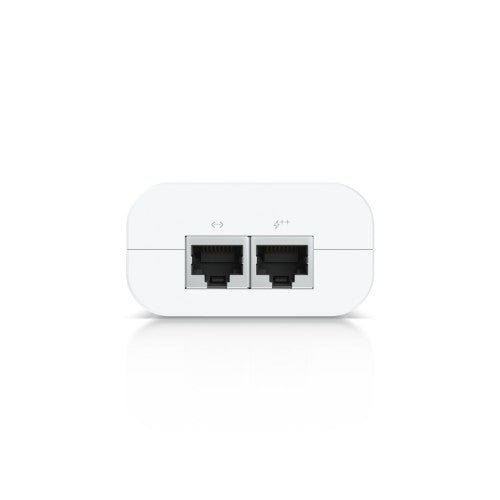

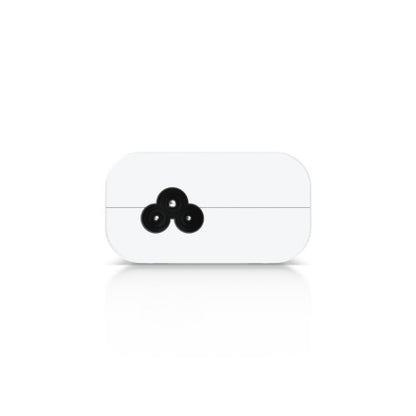

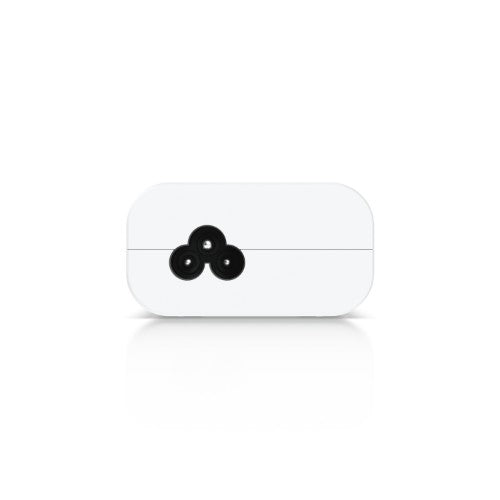

• Contains RJ45 data input, AC cable with earth ground, and PoE++ output
• LED indicator for status monitoring

Description

An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.

Specifications

Network
Networking standards	IEEE 802.3at
Power over Ethernet (PoE)	Yes
Ethernet interface type	Gigabit Ethernet
Features
Product colour	White
Networking standards	IEEE 802.3at
Certification	CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Power
Output power	60 W
Output current	0.65 A
Power over Ethernet (PoE) voltage	48 V
Input voltage	100-240 V
Input frequency	50/60 Hz
Input current	1.25 A
DC output voltage	48 V
Certificates
Certification	CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), KC, RoHS, UKCA
Sustainability
Sustainability compliance	Yes
Sustainability certificates	UL ECOLOGO
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Weight & dimensions
Weight	7.41 oz (210 g)
Width	2.48" (63 mm)
Depth	1.34" (34 mm)
Height	4.17" (106 mm)
Packaging content
Power cord included	Yes
Number of products included	1 pc(s)
Technical details
Sustainability compliance	Yes
Sustainability certificates	UL ECOLOGO
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), KC, RoHS, UKCA
