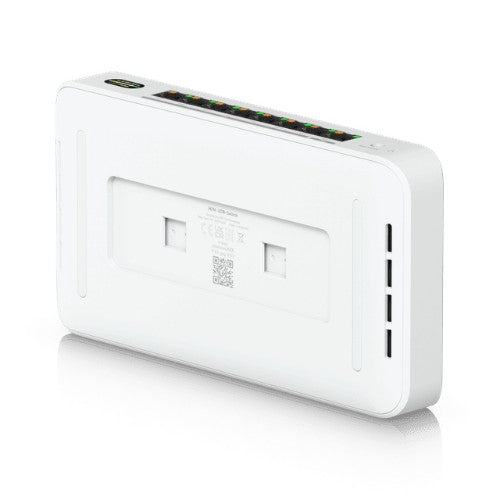

Ubiquiti UDB-Switch 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) White

Device Bridge Switch, 1x 10 GbE port, 7x 2.5 GbE ports, WiFi 7

Description

Compact PoE+ switch with 1 10 GbE port, 7 2.5 GbE ports, and 6 GHzready WiFi 7 bridging integration for seamless, highcapacity wireless uplink to UniFi WiFi.

Specifications

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	7
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
10G Ethernet (copper) ports quantity	1
Network
Networking standards	IEEE 802.11a, IEEE 802.11n, IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac
10G support	Yes
Design
Product colour	White
Power
Power supply included	Yes
Power consumption (max)	25 W
DC input voltage	54 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	185 W
Operational conditions
Operating temperature (T-T)	-30 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	8.38" (212.9 mm)
Depth	4.45" (113 mm)
Height	1.28" (32.5 mm)
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
