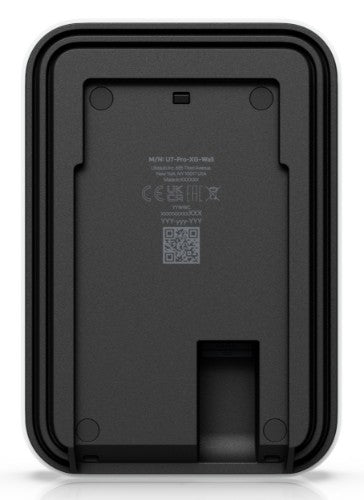

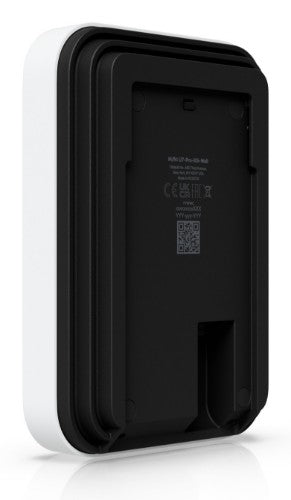

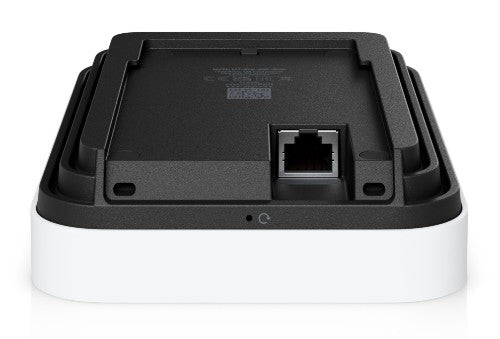

Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
Ubiquiti U7 Pro XG Wall 5800 Mbit/s White Power over Ethernet (PoE)
Regular price
$429.47
Regular price
Sale price
$429.47
Unit price
/
per
Shipping calculated at checkout.
Learn more
Couldn't load pickup availability
2
sold in recently
DESCRIPTION
DESCRIPTION
U7 Pro XG Wall
Description
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.Specifications
| Performance | |
|---|---|
| Maximum data transfer rate | 5800 Mbit/s |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Reset button | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Features | |
| 6 GHz | Yes |
| Maximum data transfer rate | 5800 Mbit/s |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Spatial streams | 6 |
| Coverage area | 140 m² |
| Wireless meshing | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Maximum Tx power (6 GHz) | 24 dBmW |
| Security | |
| Security algorithms | PPSK |
| Management features | |
| Access point management | Wi-Fi schedule |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 42.5 - 57 V |
| Design | |
| Reset button | Yes |
| Placement | Ceiling, Wall |
| LED indicators | Status |
| Housing material | Metal, Polycarbonate (PC) |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Depth | 4.25" (108 mm) |
| Height | 1.32" (33.5 mm) |
| Weight | 17.8 oz (505 g) |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 40 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
PRODUCT DETAILS
PRODUCT DETAILS
DETAILS INFO
DETAILS INFO
BEFORE YOU BUY
BEFORE YOU BUY
We sell the equipment only. Installation, configuration, programming and troubleshooting of your network or phone system are not included.
- ✔ Answers to basic questions and compatibility checks before you order
- ✔ Warranty and RMA support if a unit is defective
- ✘ No installation, configuration or programming
- ✘ No remote or on-site troubleshooting
Make sure you have an IT team, technician or service provider to install and set up the equipment. Not sure it's compatible? Call us at 1-514-360-1809 or email info@telecomdepotdirect.com before ordering. Read the FAQ
