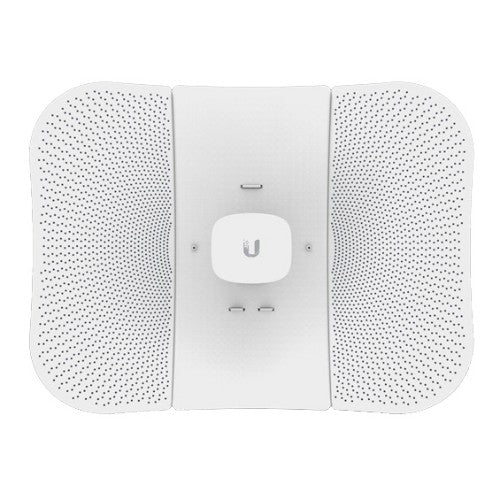

Ubiquiti LiteBeam AC Network bridge 450 Mbit/s White

450 Mbps, 23 dBi, MIPS 74Kc, 10/100/1000 Ethernet, 64 MB DDR2, 24V, 0.3A, PoE, 358 x 271.95 x 272.5 mm

Description

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.

Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.

Specifications

Data transmission
Maximum data transfer rate	450 Mbit/s
Antenna
Antenna gain level (max)	23 dBi
Wireless LAN features
Frequency band	5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Network
Ethernet LAN	Yes
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	WPA2
Management features
Web-based management	Yes
Features
Product type	Network bridge
Material	Plastic
LED indicators	LAN, Power
Internal memory	64 MB
Product colour	White
Power
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 158 °F
Certificates
Certification	CE, FCC, IC
Weight & dimensions
Weight	34.6 oz (980 g)
Dimensions (WxDxH)	14.1 x 10.7 x 10.7" (358 x 271.9 x 272.5 mm)
