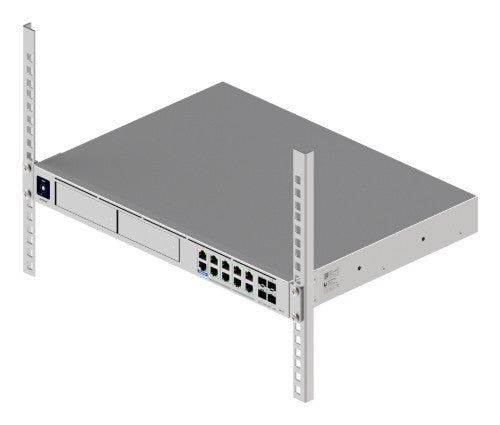

Ubiquiti Dream Machine Beast gateway/controller 10, 100, 1000, 2500, 10000, 5000 Mbit/s

25 Gbps IPS/IDS, 7,500+ client, 1U, (2) 3.5" NVR HDD bays, 342 BTU/hr, 100W

Description

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Specifications

Design
LED indicators	Activity, Error, Link, Ready
Mounting type	Rack mounting
Rack capacity	1U
Product colour	Gray
Enclosure material	Aluminium/SGCC
Performance
Built-in processor	Yes
Processor frequency	2100 MHz
Number of processors installed	1
Internal memory	16000 MB
Display type	LCM
Control display unit	Yes
Processor manufacturer	ARM
Processor family	ARM Cortex
SSD capacity	128 GB
Mounting type	Rack mounting
Rack capacity	1U
Product colour	Gray
Enclosure material	Aluminium/SGCC
Protocols
DHCP server	Yes
Routing protocols	BGP, OSPF
Network
Ethernet LAN data rates	10,100,1000,2500,10000,5000 Mbit/s
Port aggregation	Yes
Security
Firewall security	Yes
Network address translation (NAT)	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45), SFP+
Ethernet LAN (RJ-45) ports	10
Console port	RJ-45
Number of console ports	1
SFP+ ports quantity	2
Management features
Reset button	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Power
Power over Ethernet (PoE)	No
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	3 A
Heat dissipation	342 BTU/h
DC input voltage	12 V
Power consumption (max)	100 W
Electrostatic Discharge (ESD) protection (air)	8 kV
Electrostatic Discharge (ESD) protection (contact)	4 kV
Electromagnetic (EMP) protection	Yes
Electromagnetic (EMP) protection (air)	8 kV
Electromagnetic (EMP) protection (contact)	4 kV
Weight & dimensions
Weight	12.1 lbs (5.5 kg)
Width	17.4" (442.4 mm)
Height	1.72" (43.7 mm)
Depth	12.8" (325 mm)
Packaging content
Cables included	AC
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Built-in processor	Yes
Processor frequency	2100 MHz
Number of processors installed	1
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Indication
LED indicators	Activity, Error, Link, Ready
Memory
Internal memory	16000 MB
Display
Display type	LCM
Control display unit	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Features
Built-in processor	Yes
Processor frequency	2100 MHz
Number of processors installed	1
