Ubiquiti B-DB-AC wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Dual-Band airMAX ac Radio with Dedicated Wi-Fi Management

Description

Fully Integrated Radio
Launched in 2008, the Bullet™ design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.

Carrier-Class Throughput
The Bullet™AC delivers up to 300+ Mbps real TCP/IP throughput.

Durability to Last Outdoors
The robust, weatherproof case withstands harsh outdoor conditions.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Integration

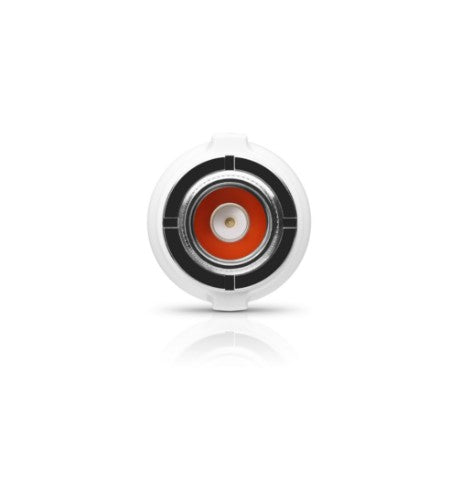

Connect the Bullet™AC to any existing antenna with an N-type female connector to create an airMAX® basestation.

Specifications

Performance
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Quality of Service (QoS) support	Yes
Channel bandwidth	80 MHz
Operating system installed	AirOS
Features
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Quality of Service (QoS) support	Yes
Channel bandwidth	80 MHz
Throughput data rate	300 Mbit/s
Operating system installed	AirOS
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	8 W
Input current	0.5 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Design
Internal	No
LED indicators	Network, Power, Signal strength
Product colour	White
Antenna
Number of connectors	1
Antenna connector type	N-type
Weight & dimensions
Width	7.48" (190 mm)
Height	1.81" (46 mm)
Weight	6.91 oz (196 g)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
