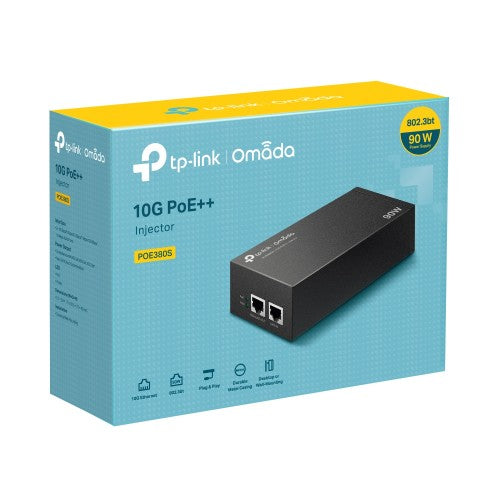

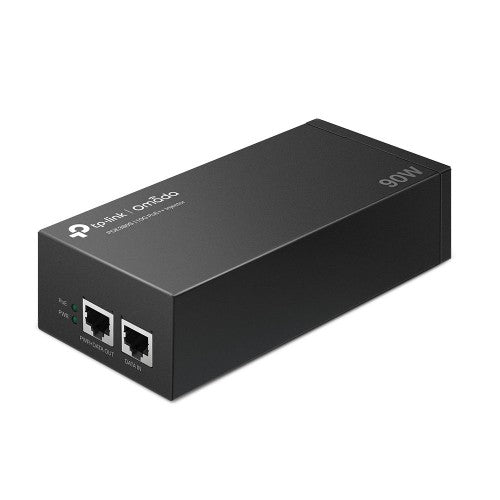

TP-Link Omada POE380S PoE adapter 10 Gigabit Ethernet

1 x 10 Gbps RJ45 In, 1x 10 Gbps RJ45 Out, 90 W max out, 155x70x42 mm

Key Features

• 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
• Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation, no configuration required
• Integrated power supply
• Durable metal casing

Description

90W 10G PoE++ Injector
Unlocks peak performance for your 10G/Multi-Gig bandwidth and devices

10G Ports Ensure Faster Connection
Auto-negotiation for 6-speed (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps /10 Mbps)

Auto Detect the Required Power, Up to 90 W
Standard 802.3af/at/bt for Various Powered Devices

Specifications

Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,2500,10000 Mbit/s
Ethernet interface type	10 Gigabit Ethernet
Cabling technology	1000/10000
Features
Product colour	Black

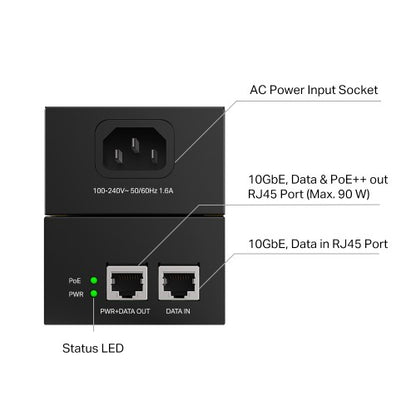

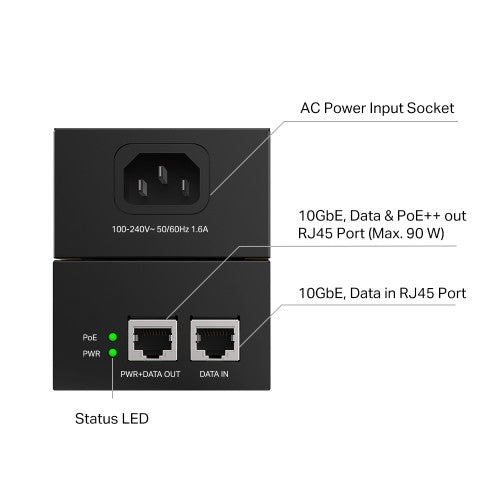

LED indicators	PoE, Power
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
Power
Input current	1.6 A
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	6.1" (155 mm)
Depth	2.76" (70 mm)
Height	1.65" (42 mm)
Packaging content
Quick installation guide	Yes
Number of products included	1 pc(s)
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
