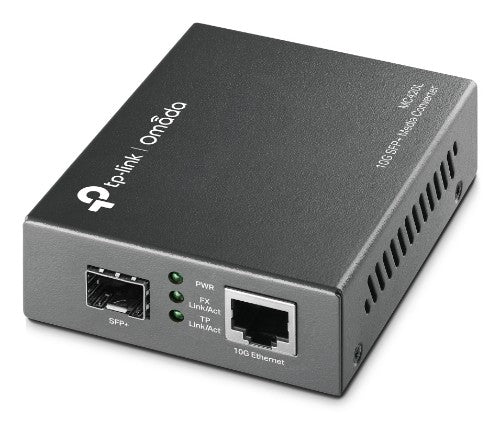

TP-Link Omada MC420L network media converter 10000 Mbit/s Multi-mode, Single-mode Black

Omada 10G Multi-Gigabit SFP Media Converter

Key Features

• 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
• FX port supports hot-swappable
• Maximum transmission distance depends on the inserting SFP

Description

What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

Specifications

Network
Maximum data transfer rate	10000 Mbit/s
Auto-negotiation	Yes
Copper ethernet cabling technology	2.5GBASE-T, 10GBASE-T, 1000BASE-T
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z
Duplex system	Full, Half
Data transfer rate	10000 Mbit/s
Fiber optic connector	SFP+
Performance
Maximum transfer distance	3937" (100 m)
Fiber mode structure	Multi-mode, Single-mode
Auto-negotiation	Yes
Features
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
Power
Power consumption (max)	4.12 W
Weight & dimensions
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
AC adapter included	Yes
Manual	Yes
Design
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Technical details
Data transfer rate	10000 Mbit/s
Compliance certificates	RoHS, UL
Certificates
Compliance certificates	RoHS, UL
