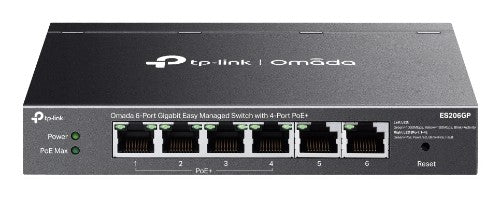

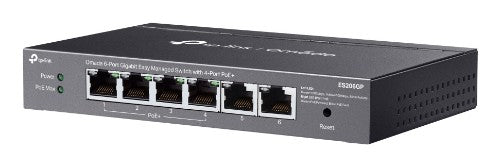

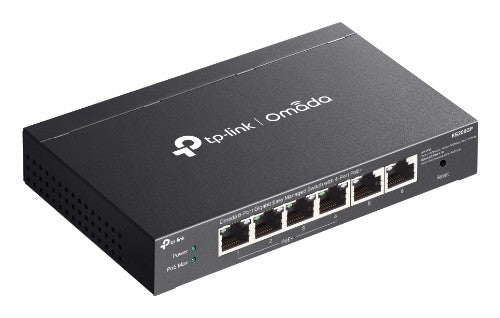

TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+

Key Features

• 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
• 65W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation

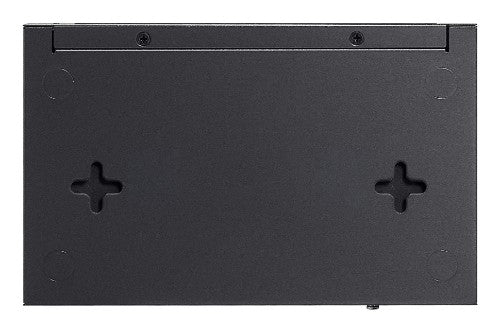

• Durable metal casing and desktop/wall mounting design

Description

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Switch type	Managed
Reset button	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Unified static configuration	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	6
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Fast leave	Yes
Zero Touch Provisioning (ZTP)	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Jumbo frames	15
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	4 MB
Forwarding rate	7.4 Mpps
Security
Loop protection	Yes
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Design
Product colour	Black
Reset button	Yes
Wall mountable	Yes
LED indicators	Yes
Performance
Firmware upgradeable	Yes
Fanless	Yes
Packet buffer memory	4 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
Surge protection voltage	6 kV
Input current	1.31 A

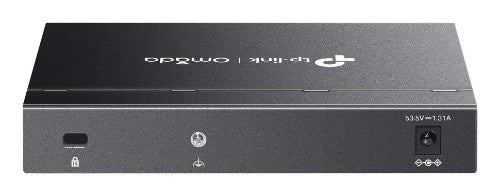

DC input voltage	53.5 V
Surge protection	Yes
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	65 W
Power over Ethernet (PoE) type supported	PoE+
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Virtual LAN features
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	6.22" (158 mm)
Depth	3.98" (101 mm)
Height	0.984" (25 mm)
Packaging content
User guide	Yes
AC adapter included	Yes
Packaging data
Package type	Box
AC adapter included	Yes
User guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
