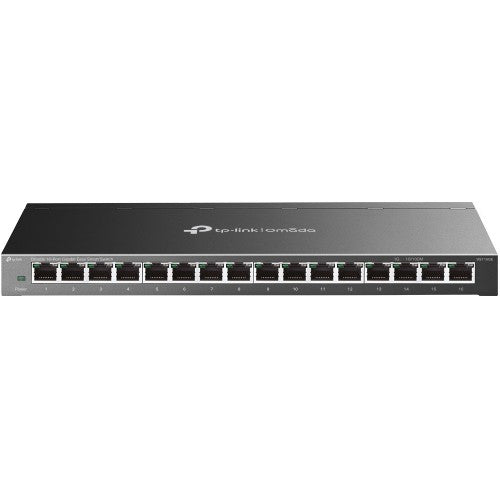

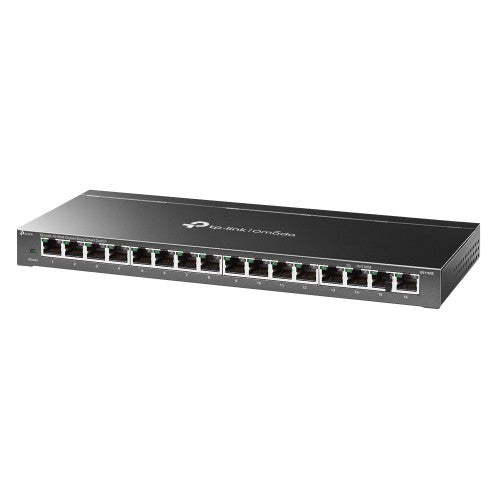

TP-Link Omada DS116GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

16-Port RJ45 Gigabit Easy Smart Switch, L2, 32Gbps, Fanless, 9.19W (220V/50Hz)

Key Features

• 16× 10/100/1000Mbps RJ45 ports
• Plug and play for instant connectivity
• Simple configuration via web-based user interface and management utility*
• Durable metal casing of superior quality and professional appearance
• Green technology reduces power consumption
• Note: This Omada Easy Smart switch does not support Omada SDN central management

Description

Omada 16Port Gigabit Easy Smart SwitchPORT: 16 Gigabit RJ45 PortsSPEC: Desktop Steel CaseFEATURE: MTU/Port/Tagbased VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play

Specifications

Management features
Switch layer	L2
Switch type	Managed
Reset button	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of VLANs	32
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Jumbo frames	9
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	23.81 Mpps
Number of VLANs	32
Security
Loop protection	Yes
IGMP snooping	Yes
Queue scheduling algorithms	Priority queuing (PQ)
Design
Product colour	Black
Reset button	Yes
LED indicators	Yes
Housing material	Steel
Performance
Fanless	Yes
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	9.19 W
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	31.36 BTU/h
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	10.6" (268 mm)
Depth	4.4" (111.7 mm)
Height	1" (25.4 mm)
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Rubber feet	Yes
Packaging data
Rubber feet	Yes
Rack mount kit	Yes
User guide	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
