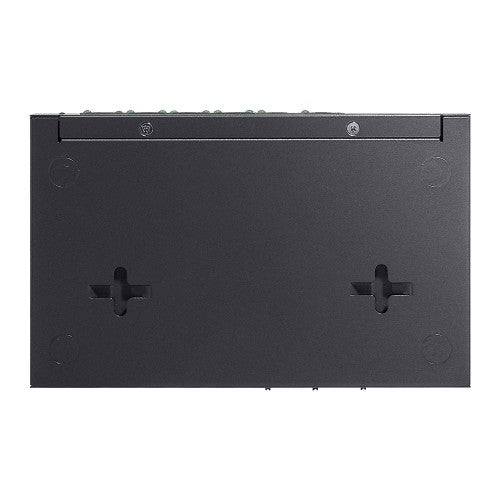

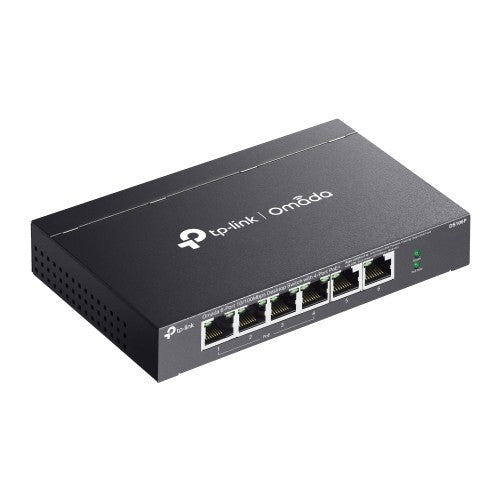

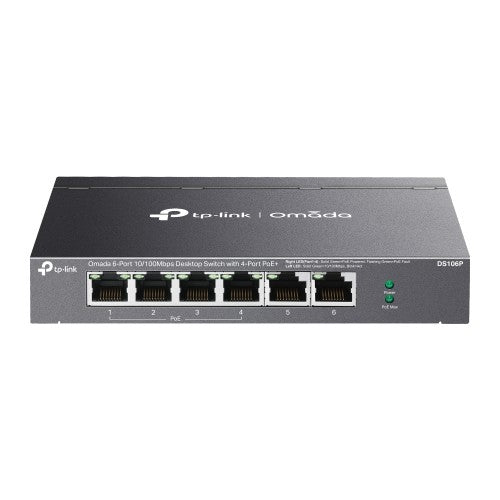

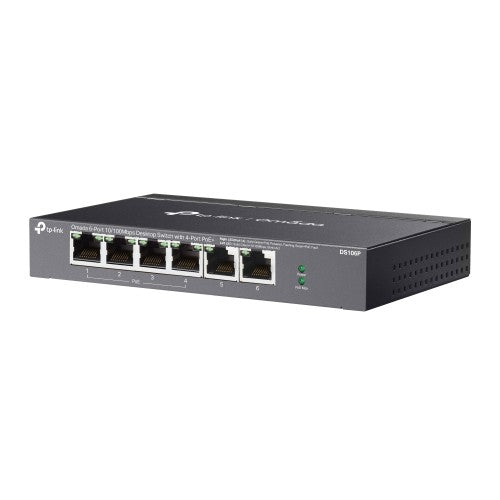

TP-Link Omada DS106P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
TP-Link Omada DS106P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Regular price
$60.14
Regular price
Sale price
$60.14
Unit price
per
Shipping calculated at checkout.
Learn more
Couldn't load pickup availability
5
sold in recently
DESCRIPTION
DESCRIPTION
6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+, 1.2 Gbps, Fanless, 67 W
Key Features
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required
Description
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Full duplex | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 1.2 Gbit/s |
| Jumbo frames | 2 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 0.8928 Mpps |
| Design | |
| Product colour | Black |
| Reset button | Yes |
| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (max) | 75.4 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 67 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 257.11 BTU/h |
| Weight & dimensions | |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Packaging data | |
| User guide | Yes |
| Cables included | Power |
| Other features | |
| Ethernet LAN data rates | 10,100 Mbit/s |
