TP-Link Omada DS105G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

5-Port Gigabit Desktop Switch, Fanless, 3.1 W (220 V/ 50 Hz), 10.57 BTU/h

Key Features

• 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Plug and play, no configuration needed, and no management required
• Supports 802.1p/DSCP QoS and IGMP Snooping functions

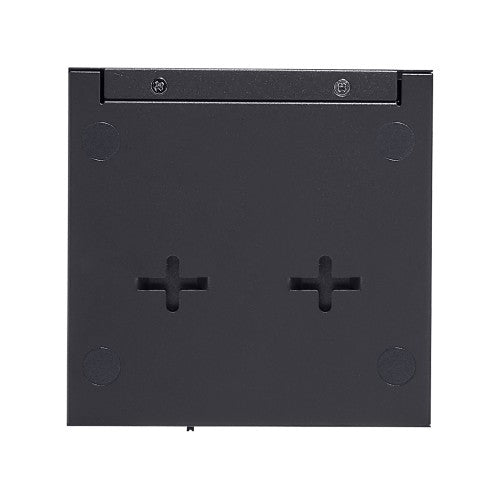

• Durable metal casing, desktop/wall-mounting options, and a fanless design
• IEEE 802.3x flow control provides reliable data transfer
• Green Ethernet technology reduces power consumption
• Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

Description

Omada 5-Port Gigabit Desktop Switch PORT: 5 Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play

Specifications

Management features
Switch type	Unmanaged
Reset button	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames	16
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	1 MB
Forwarding rate	7.4 Mpps
Security
Loop protection	Yes
Design
Rack mounting	No
Product colour	Black
Reset button	Yes
LED indicators	Activity, Link, Power
Housing material	Steel
Performance
Fanless	Yes
Packet buffer memory	1 MB
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	3.1 W
Input current	0.6 A
DC input voltage	5 V
Power source	AC/DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	10.54 BTU/h
Weight & dimensions
Width	3.93" (99.8 mm)
Depth	3.85" (97.8 mm)
Height	0.984" (25 mm)
Packaging content
User guide	Yes
Cables included	Power
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Packaging data
User guide	Yes
Cables included	Power
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
