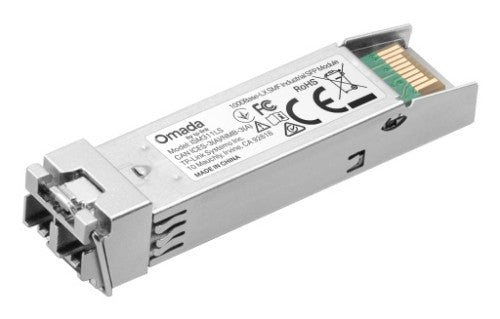

TP-Link ISM311LS network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm

ISM311LS 1000Base-LX SMF Industrial SFP Module

Key Features

• Single-mode SFP LC Transceiver
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Hot-Pluggable with maximum flexibility
• Industrial Product Operating Temperature Range: -40-85°C

Description

ISM311LS is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LS can extend the distance to 20km. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum transfer distance	787401.6" (20000 m)
Wavelength	1310 nm
Fiber cable diameters supported (core/cladding)	9/125 µm
Single-mode fiber (SMF) supported	Yes
Ethernet interface type	1.25 Gigabit Ethernet
Product colour	Gray
Hot-swap	Yes
Features
Product colour	Gray
Hot-swap	Yes
Certification	FCC, CE
Power
Input voltage	3.3 V
Certificates
Certification	FCC, CE
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 85%
Minimum operating temperature	-40 °C
Maximum operating temperature	85 °C
Network
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Ethernet interface type	1.25 Gigabit Ethernet
Weight & dimensions
Width	2.22" (56.4 mm)
Depth	0.528" (13.4 mm)
Height	0.433" (11 mm)
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
