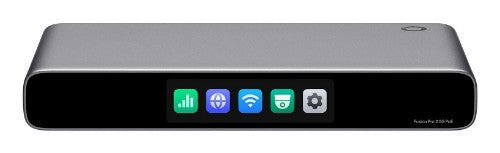

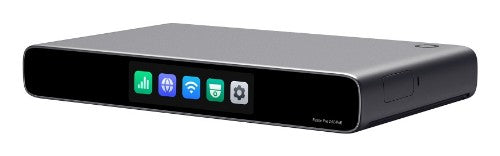

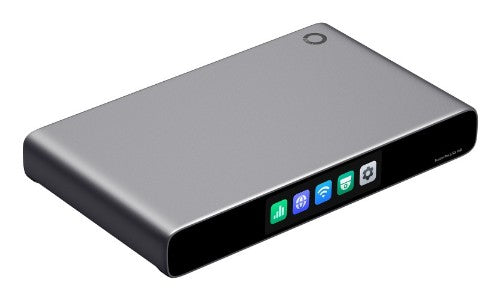

TP-Link Omada Fusion Pro 2.5G PoE gateway/controller 2500 Mbit/s

Fusion Pro 2.5G PoE Gateway with SSD Tray, 3.69", LCM, Touchscreen, 4 GB DDR4, 54V/4.16A, 225 W PoE+, Black, 226 × 135 × 31.5 mm

Key Features

• One Platform for Networking & Surveillance: Centrally manage Omada APs, switches, cameras, and an NVR.
• Simplified Setup: App-guided onboarding via Bluetooth and one-tap bulk device adoption.
• License‑Free Cloud Management: Advanced networking & AI-powered surveillance with DPI, QoS, and Smart Search*.
• Enterprise‑Grade Performance: 9× 2.5G ports (8× PoE+, 180W total budget), Quad-core CPU, 2.3 Gbps IPS/IDS throughput†.
• Flexible Storage Options: 1× NVMe SSD tray for 2TB video storage or an external NVR expansion for up to 24× cameras.
• Quick Troubleshooting via Touchscreen: Speed test, fault alerts, traffic insight, and more.
• Advanced Software Capabilities: Full-featured VPNs, full mesh SD-WAN, auto QoS, content filtering.
• Professional Video Monitoring: Smart Search, case management, third-party camera support, and cloud drive & NAS archive.

Description

Unified Control for Networking & Surveillance in One Platform
Combining a gateway, controller, and video management system in a single device, Omada Fusion Pro 2.5G PoE delivers a unified networking and surveillance solution. Centrally manage APs, switches, cameras, and an NVR through one intuitive interface. Instantly detect, diagnose, and resolve issues without switching between systems.

Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion Pro 2.5G PoE via Bluetooth using the Omada app. Automatically discover and batch adopt all other Omada and VIGI devices at once, saving time and simplifying IT deployment.

License‑Free Cloud Management, Lower Ongoing Costs
Enjoy premium networking and AI-powered security features, including DPI, IDS/IPS, Smart Search*, and more, all included with no additional subscription fees.

Enterprise‑Grade Performance, Built for Demanding Environments

Quick Troubleshooting via Touchscreen,
Reducing On-Site Visits
With an innovative 3.69-inch touchscreen, enjoy quick troubleshooting—all at your fingertips. Reduce on‑site visits and save time with direct, on‑device monitoring.

Secure Remote Network Access, One Click Away
With Omada LightLink VPN, securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.

Advanced Networking Capabilities for Secure and Intelligent Management

Simple Multi-Site Connectivity with Full-Mesh SD-WAN
Connect up to 20 sites with direct inter‑site links—simpler to deploy, smoother for multi‑site networking.

App‑Based Access Control
Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.

One-Click Auto QoS
Ensure critical traffic always gets priority, with one-click presets or full customization.

Content Filtering & Ad Blocking
Blocks unwanted sites and intrusive ads for a safer, cleaner experience.

Professional Features for High-Efficiency Video Monitoring

Uninterrupted Surveillance with Easier Maintenance

Flexible Mounting for Diverse Business Environments
Desktop
No Additional Installation Needed

Wall‑Mountable
Magnetic-Mount Plate Needed

Rack‑Mountable
Rack-Mount Kit Needed

Designed for Forward-Thinking Businesses

Specifications

Design
LED indicators	Link, PoE
Mounting type	Rack/Desktop/Wall
Product colour	Black
Enclosure material	Polycarbonate (PC)
Number of fans	1 fan(s)
Performance
Internal memory type	DDR4
Internal memory	4000 MB
Display type	LCM
Control display unit	Yes
Number of SSDs supported	1
Mounting type	Rack/Desktop/Wall
Product colour	Black
Enclosure material	Polycarbonate (PC)
Protocols
DHCP server	Yes
Network
NAT functionality	Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	2500 Mbit/s
IPSec VPN throughput	1.332 Gbit/s
Bluetooth	Yes
Mobile network generation	Not supported
SSL VPN throughput	0.371 Gbit/s
Security
NAT functionality	Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Security algorithms	SNMP, SNMPv2, SNMPv3, SSID, PPSK
Firewall security	Yes
Access Control List (ACL)	Yes
ARP attack prevention	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)

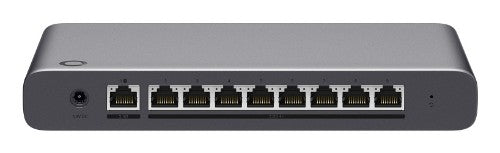

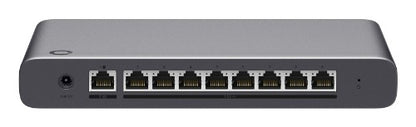

Ethernet LAN (RJ-45) ports	9
DC-in jack	Yes
Management features
Reset button	Yes
Quality of Service (QoS) support	Yes
Performance management	Cloud Access • On-Premises Management • Omada App • Omada Guard App
Power
Power over Ethernet (PoE)	Yes
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	4.16 A
DC input voltage	54 V
Power consumption (max)	225 W
Power over Ethernet (PoE) type supported	PoE+
Weight & dimensions
Weight	29.2 oz (828 g)
Width	5.31" (135 mm)
Height	1.24" (31.5 mm)
Depth	8.9" (226 mm)
Technical details
Performance management	Cloud Access • On-Premises Management • Omada App • Omada Guard App
Indication
LED indicators	Link, PoE
Memory
Internal memory type	DDR4
Internal memory	4000 MB
Display
Touchscreen	Yes
Display type	LCM
Display diagonal	3.69"
Control display unit	Yes
