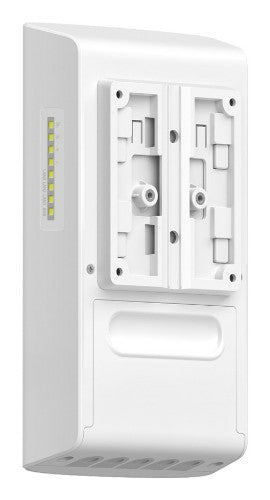

TP-Link Omada Flex Bridge 5 Network bridge 867 Mbit/s White

Flex Bridge 5, 12V DC, 802.3at/af PoE, IP66, IEEE 802.11 a/n/ac

Key Features

• Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.
• Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations.
• Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
• Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
• Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
• Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.
• Flexible Power Supply Options: Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.
• App-Guided Alignment for Optimal Performance: Simply bridge alignment with real-time signal strength visualization on the Omada app.
• Remote Monitoring with Standalone & SDN Management: Use the Omada app for easy on-site setup-no internet required. For added flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.

Description

Omada 5 GHz 867 Mbps Long-Range Connectivity for Indoors/Outdoors Wireless Flex Bridge

Role & DIP Switches for Simple Pairing
Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.

Versatile Power Management: Integrated Edge
Power for Any Scenario
Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible
power supply via a PoE switch, the included passive PoE adapter, or solar power.

Specifications

Data transmission
Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	196850.4" (5000 m)
Antenna
Antenna gain level (max)	17 dBi
Antenna design	Internal
Antenna type	2x2
Wireless LAN features
Frequency band	5 GHz
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Network
Networking standards	IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
Security
Security algorithms	SNMP, SSH
Management features
Web-based management	Yes
Features
Product type	Network bridge
Reset button	Yes
Network Time Protocol (NTP) client	Yes
International Protection (IP) code	IP66
LED indicators	Power
Product colour	White
Mounting type	Pole
Power
Power source type	DC, PoE
DC input voltage	12 V
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	24 V
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, FCC
Weight & dimensions
Weight	20.8 oz (590 g)
Width	8.43" (214.2 mm)
Depth	2" (50.8 mm)
Height	4.72" (119.8 mm)
