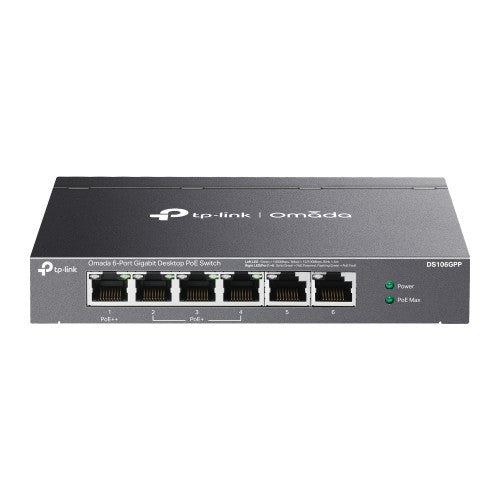

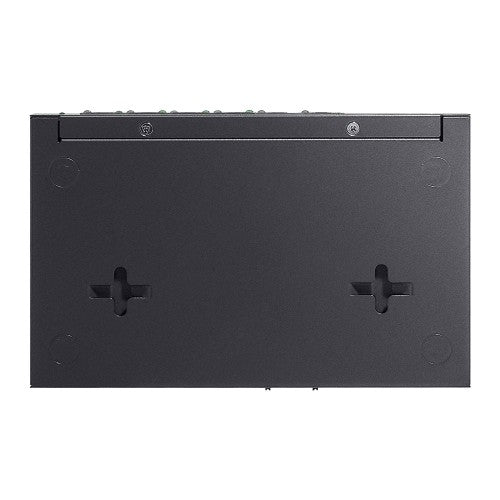

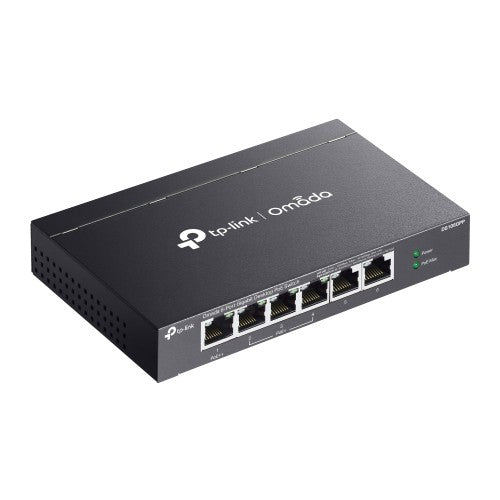

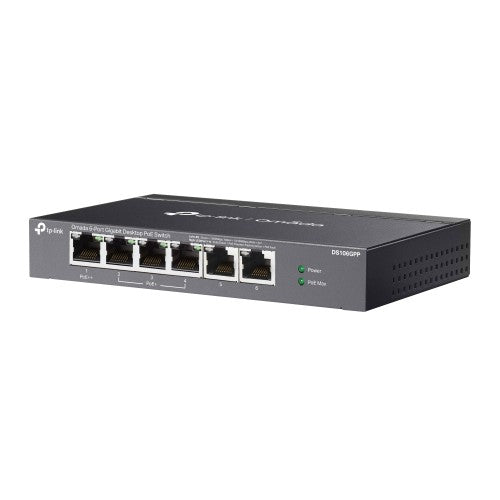

TP-Link Omada DS106GPP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

6-Port Gigabit Unmanaged Desktop Switch with 3-Port PoE+ and 1-Port PoE++, 12 Gbps, Fanless, 4.75 W/71.46 W

Key Features

• 6× 10/100/1000 Mbps RJ45 ports
• With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
• Supports PoE Power up to 64 W for all PoE ports
• Up to 250m (820ft) data and power transmitting range under Extend Mode
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required

Description

Omada 6Port Gigabit Desktop Switch with 3Port PoE+ and 1Port PoE++PORT: 1 Gigabit PoE++ Port, 3 Gigabit PoE+ Ports, 2x Gigabit NonPoE PortsSPEC: 802.3af/at/bt type3, 64 W PoE Power, Desktop Steel CaseFEATURE: Extend Mode for 250m PoE Transmitting for Port12, PoE Auto Recovery for Port14, Plug and Play

Specifications

Management features
Switch type	Unmanaged
Reset button	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	12 Gbit/s
Store-and-forward	Yes
Forwarding rate	8.928 Mpps
Security
IGMP snooping	Yes
Design
Product colour	Black
Reset button	Yes
Housing material	Steel
Performance
Fanless	Yes
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	71.46 W
Input voltage	53.5 V
Power source	AC/DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	64 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	3
Power over Ethernet 4PPoE (PoE++) ports quantity	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	243.68 BTU/h
Weight & dimensions
Width	6.22" (158 mm)
Depth	3.98" (101 mm)
Height	0.984" (25 mm)
Packaging content
User guide	Yes
Cables included	Power
Rubber feet	Yes
Packaging data
Rubber feet	Yes
User guide	Yes
Cables included	Power
Technical details
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Certificates
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Other features
Input voltage	53.5 V
Ethernet LAN data rates	10,100,1000 Mbit/s
