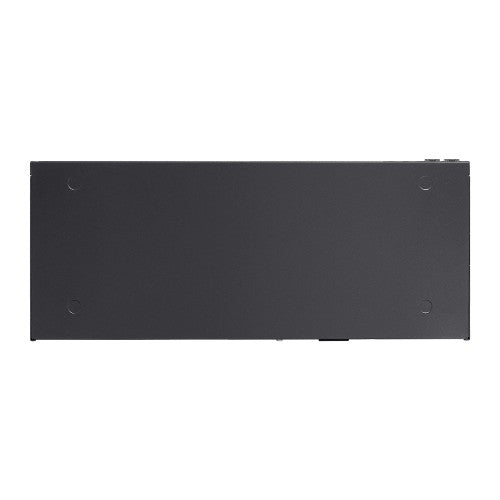

TP-Link ES228GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link ES228GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Regular price
$345.71
Regular price
Sale price
$345.71
Unit price
/
per
Shipping calculated at checkout.
Learn more
Couldn't load pickup availability
5
sold in recently
DESCRIPTION
DESCRIPTION
L2, 24xPoE+, 8K MAC, 56 Gbit/s, 100-240V, 50/60Hz
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Description
Omada Central Essentials — A Free and Easy Cloud-Based Network ManagementOmada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 26 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames | 15000 |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
| Forwarding rate | 41.67 Mpps |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Power | |
| Power supply included | No |
| Power protection features | Surge protection |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power protection features | Surge protection |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 7.09" (180 mm) |
| Height | 1.73" (44 mm) |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Performance | |
| Stackable | No |
| Packet buffer memory | 4 MB |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
PRODUCT DETAILS
PRODUCT DETAILS
DETAILS INFO
DETAILS INFO
BEFORE YOU BUY
BEFORE YOU BUY
We sell the equipment only. Installation, configuration, programming and troubleshooting of your network or phone system are not included.
- ✔ Answers to basic questions and compatibility checks before you order
- ✔ Warranty and RMA support if a unit is defective
- ✘ No installation, configuration or programming
- ✘ No remote or on-site troubleshooting
Make sure you have an IT team, technician or service provider to install and set up the equipment. Not sure it's compatible? Call us at 1-514-360-1809 or email info@telecomdepotdirect.com before ordering. Read the FAQ
