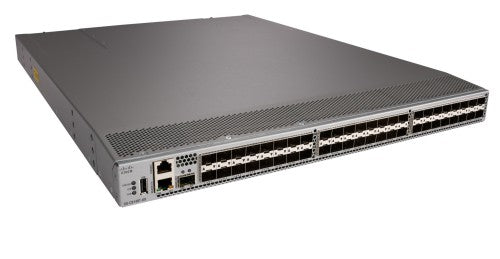

HPE SN6620C 32Gb 48/24 32Gb Short Wave SFP+ Fibre Channel v2 Switch

HPE SN6620C 32Gb 48/24 32Gb Short Wave SFP+ Fibre Channel v2 Switch, 1U

Reasons To Buy

High-speed Fibre Channel Connectivity for NVMe/All-Flash Arrays

HPE Storage Fibre Channel Switch C-series SN6620C provides consistent 32 Gbps low-latency performance across every FC port on the switch.
Delivers increased performance with an aggregate bandwidth of 1536 Gbps for growing and dynamic workloads.
Supports the performance and scale required to deploy a dedicated and standalone FC SAN connecting both initiators and targets without requiring any other switching infrastructure.
Powered by the same high-performance 32 Gbps ASIC that powers the HPE Storage Director Switch C-series SN8500C portfolio.
FC-NVMe-ready SAN switch with enhanced buffer-to-buffer (B2B) credits connecting both storage and host ports and FC link encryption.

More Flexibility

HPE Storage Fibre Channel Switch C-series SN6620C provides an option to deploy as few as 24, 32 Gbps FC ports in the entry-level variant, which can grow in increments of 8 ports to 48 ports.
Allow users to deploy them with 32 Gb, 16 Gb, or 8 Gb optics to accommodate their budget while being fully prepared for tomorrow.
Increased fabric scalability provides more flexibility for a variety of SAN architectures.

Easy Manageability

HPE Storage Fibre Channel Switch C-series SN6620C supports enhanced diagnostic features such as inter-switch link (ISL) and host-bus-adapter (HBA) diagnostics, read diagnostic parameter, link cable beacon, and advanced reliability features such as forward error correction (FEC) with HBA ports.
Cisco Data Center Network Manager (Essentials Edition) software, included with the switch, provides a centralized management tool with task-based wizards that simplifies management of switches and fabrics. Additional advanced features are available with the DCNM licensed version, sold separately.
Starting from release 12.0.1a, DCNM is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC).
HPE C-series SAN Insights (Cisco SAN Analytics) delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays.

Intelligent Network Services for SAN

HPE Storage Fibre Channel Switch C-series SN6620C supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.
Provides visibility into all virtual machines that are accessing the storage LUNs in the fabric and provide an end-to-end view for analytics.
Delivers powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.

Description

HPE SN6620C 32Gb 48/24 32Gb Short Wave SFP+ Fibre Channel v2 Switch. Form factor: 1U

Specifications

Security
Security algorithms	SNMPv3
Protocols
Supported protocols	Fibre Channel
Design
Form factor	1U
Performance
Media types supported	Supports 32 Gb, 16 Gb, and 8 Gb transceivers
Power
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Other features
Weight (imperial)	16.7 lbs
Upgrade type	Activate additional ports using 8 port upgrade license
Technical features	Non-disruptive software upgrades, hot-swappable and dual redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart
Port speed rating	32 Gb
Optional software	Port upgrade license, Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, SAN Insights (1, 3, 5 years), Advantage license (1, 3, 5 years), and Premier license (1, 3, 5 years)
Dimensions (W x D x H) (imperial)	1.72 x 17.3 x 22.3"
Supported protocols	Fibre Channel
Weight & dimensions
Width	1.72" (43.7 mm)
Depth	17.3" (439 mm)
Height	22.3" (566 mm)
Weight	18.7 lbs (8.5 kg)
System requirements
Media types supported	Supports 32 Gb, 16 Gb, and 8 Gb transceivers
