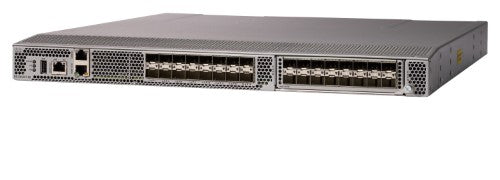

HPE SN6610C 32Gb 8-port 32Gb Short Wave SFP+ Fibre Channel Switch

HPE SN6610C 32Gb 8-port 32Gb Short Wave SFP+ Fibre Channel Switch, Managed, Rack mounting, 1U

Reasons To Buy

High Performance for NVMe/All-flash Arrays and Virtualized Workloads

HPE Storage Fibre Channel Switch C-series SN6610C provides consistent 32 Gbps low-latency performance across every FC port on the switch.
Delivers increased performance with an aggregate bandwidth of 1024 Gbps for growing and dynamic workloads.
Delivers the same outstanding availability and reliability as previous generation HPE Storage Fibre Channel Switch C-series SN6610C by providing optional redundancy on all major components such as power supplies and fans.
Provides visibility into each virtual machine logged into the fabric through HBAs capable of priority tagging the Virtual Machine Identifier (VMID) on every FC frame.
On-board hardware that protects the entire system from malicious attacks by limiting access to critical components such as the bootloader, system image loader and Joint Test Action Group (JTAG) interface.

Investment Protection

The HPE Storage Fibre Channel Switch C-series SN6610C provides an option to deploy as few as eight 32 Gbps Fibre Channel (FC) ports which can grow from 8 ports to 16 ports, and thereafter with a port expansion module. Expanding up to a maximum of 32 ports.
Configurable with 16 Gb FC SFP+ or 32 Gb FC SFP+ optics to accommodate your budget while being fully prepared for tomorrow.
Lower initial investment and power consumption for entry-level configurations of up to 8 ports compared to a fully loaded 32 port switch.

Intelligent Network Services for Modern SAN

The HPE Storage Fibre Channel Switch C-series SN6610C supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.
The VSAN technology provides a cost-effective way to consolidate resources while providing high resiliency to potential fabric disruptions.
Provides powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.

Easy Manageability

The HPE Storage Fibre Channel Switch C-series SN6610C provides intelligent diagnostics tools such as inter-switch link diagnostics, read diagnostic parameters, protocol decoding, network analysis tools, and others for improved reliability, faster problem resolution, and reduced service costs.
Consolidate separate physical SAN fabrics into one large fabric for ease of management and reduced total cost of ownership.
Cisco Data Center Network Manager (Essentials Edition) software, included with switch, provides a centralized management tool with task-based wizards. Additional advanced features are available with the DCNM / Cisco Nexus Dashboard Fabric Controller (NDFC) licensed version, sold separately.
Starting NX-OS 9.2(1), DCNM is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC).
HPE C-series SAN Insights (Cisco SAN Analytics) delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays.

Description

HPE SN6610C 32Gb 8-port 32Gb Short Wave SFP+ Fibre Channel Switch. Switch type: Managed. MAC address table: 0 entries, Switching capacity: 1024 Gbit/s. Rack mounting, Form factor: 1U

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber ports quantity	8
Fiber optic connector	SFP+
Data transmission
MAC address table	0 entries
Switching capacity	1024 Gbit/s
Security
SSH/SSL support	Yes
Security algorithms	SNMPv3
Protocols
Management protocols	SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI
Supported protocols	Fibre Channel
Design
Rack mounting	Yes
Product colour	Metallic
Form factor	1U
Performance
Media types supported	Supports 32Gb, 16Gb, and 8Gb transceivers
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Upgrade type	Activate additional ports using 8 port upgrade license

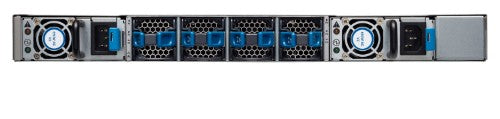

Technical features	Non-disruptive software upgrades, hot-swappable and dual redundant power supplies, hot-swappable fan module, hot-swappable SFP+ optics, stateful process restart
Port speed rating	32 Gb
Optional software	Port upgrade license, Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, SAN Insights (1, 3, 5 years), Advantage license (1, 3, 5 years), and Premier license (1, 3, 5 years)
Dimensions (W x D x H) (imperial)	1.72 x 17.3 x 20.11"
Supported protocols	Fibre Channel
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	-2362.2 - 78740.2" (-60 - 2000 m)
Weight & dimensions
Width	17.2" (435.9 mm)
Depth	16.3" (415 mm)
Height	1.72" (43.7 mm)
Weight	20.1 lbs (9.1 kg)
Optical fiber
Fiber optic connector	SFP+
System requirements
Media types supported	Supports 32Gb, 16Gb, and 8Gb transceivers
Logistics data
Harmonized System (HS) code	85176990
