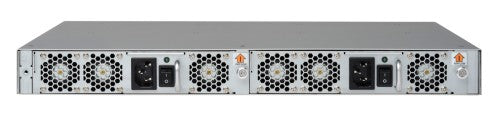

HPE SN6600B 32Gb 48/24 16Gb Short Wave SFP+ Fibre Channel Switch

HPE SN6600B 32Gb 48/24 16Gb Short Wave SFP+ Fibre Channel Switch, 1U

Reasons To Buy

Increase Performance for Application and Solid State Storage Architectures

The HPE Storage Fibre Channel Switch B-series SN6600B delivers increased performance through a combination of improved throughput and low latency across 32Gb and 128Gb links in hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments.
The onboard ASIC provides up to 566 million frames switched per second and up to 100 million IOPS to meet the demands of flash-based storage workloads.^[1]
Port-to-port latency is reduced to 780 nanoseconds (including FEC) through the use of cut-through switching at 32G.^[2]
With 48 SFP+ ports and 4 QSFP ports, each providing four 32Gb connections, it can scale up to 64 device ports for an aggregate throughput of 2Tb.

Ultra-dense and Highly Scalable

The HPE Storage Fibre Channel Switch B-series SN6600B scales up to 64 Fibre Channel ports in an efficiently designed 1U form factor, delivering increased port density and space utilization for simplified scalability.
Each of the 48 SFP+ ports supports 4, 8, 10, 16, and 32Gb FC speeds, while each of the four QSFP ports is capable of supporting 128Gb.
Provides flexibility to utilize high-speed 32Gb as well as 16Gb optics on demand to meet growing data center needs and provide backward compatibility to older infrastructures.

Simplified Management with Deep Analytical Insights

HPE Storage Fibre Channel Switch B-series SN6600B combines HPE Power Pack+ software that helps simplify monitoring, improve operational stability, and dramatically reduce costs.
Proactively and non-intrusively monitor storage device IO providing deep insight into problems and improved service level agreements (SLA).
Gain comprehensive visibility into the fabric using browser-accessible dashboards with drill-down capabilities.

Building Block for Virtualized, Private Cloud Storage

The HPE Storage Fibre Channel Switch B-series SN6600B supports multitenancy in cloud environments reducing the number of switches required.
Provides efficient link utilization with up to 64Gb of in-flight data compression over inter-switch links (ISLs).
Internal fault-tolerant and enterprise-class reliability, availability, and serviceability (RAS) features help reduce downtime to support mission-critical cloud environments.

Description

HPE SN6600B 32Gb 48/24 16Gb Short Wave SFP+ Fibre Channel Switch. Form factor: 1U

Specifications

Protocols
Supported protocols	Fibre Channel
Design
Form factor	1U
Performance
Media types supported	Supports 32Gb, 16Gb, 10Gb transceivers
Power
Redundant power supply (RPS) support	Yes
Other features
Performance management	B-series SAN Network Advisor; Integration with Storage Essentials
Weight (imperial)	17 lbs
Upgrade type	Activate additional ports using 12 port SFP and 16 port QSFP POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Port speed rating	32Gb
Optional software	SANnav, HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
Dimensions (W x D x H) (imperial)	1.73 x 17.32 x 14"
Supported protocols	Fibre Channel
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	17.3" (440 mm)
Height	14" (355.6 mm)
Weight	17 lbs (7.73 kg)
System requirements
Media types supported	Supports 32Gb, 16Gb, 10Gb transceivers
