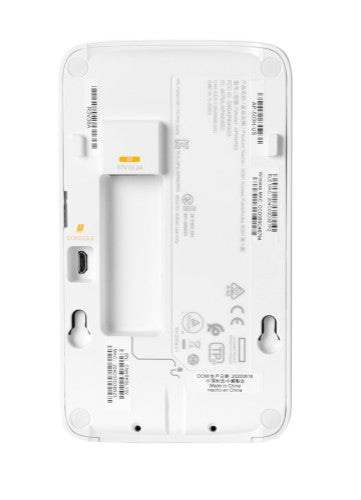

HPE R3V36AR wireless access point 1487 Mbit/s White Power over Ethernet (PoE)

Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP

Description

HPE Aruba Networking 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.5 Gbps maximum combined speed, Zero Touch Provisioning, and wired ports, the 500H Series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H Series is Wi-Fi CERTIFIED™ and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500H Series includes a limited lifetime warranty.

Specifications

Performance
Maximum data transfer rate	1487 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	1487 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Bluetooth	Yes
Bluetooth version	5.0
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	287 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Security
Security algorithms	WPA2, WPA3
Ports & interfaces
USB connector type	Micro-USB B
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (typical)	10 W
Power over Ethernet (PoE)	Yes
Design
Placement	Table, Wall
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5.6 dBi
Antenna direction type	Semi-directional
Antenna features	Integrated antenna
Technical details
Compliance certificates	Low Voltage Directive (LVD)
Certificates
Compliance certificates	Low Voltage Directive (LVD)
Weight & dimensions
Width	3.39" (86 mm)
Depth	1.85" (47 mm)
Height	5.91" (150 mm)
Weight	12.7 oz (360 g)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
