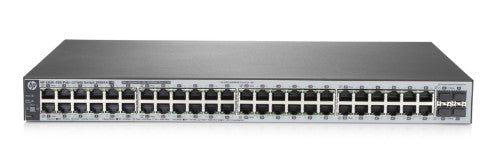

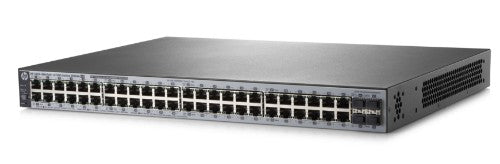

HPE OfficeConnect 1820 48G PoE+ (370W) Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

HPE OfficeConnect 1820 48G PoE+ (370W), Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE OfficeConnect 1820 48G PoE+ (370W). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Throughput	77.3 Mpps
Latency (10-100 Mbps)	7 µs
Latency (1 Gbps)	2 µs
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Security
SSH/SSL support	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Performance
Processor frequency	400 MHz
Memory type	SDRAM
Internal memory	128 MB
Flash memory	16 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	Yes
Packet buffer memory	1.5 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	481 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	12.7" (322.6 mm)
Height	1.73" (43.9 mm)
Weight	9.7 lbs (4.4 kg)
Sustainability
Sustainability certificates	ENERGY STAR
Technical details
Sustainability certificates	ENERGY STAR
