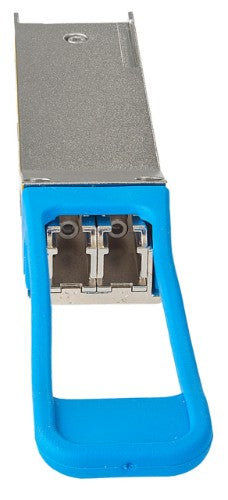

HPE Networking X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

HPE Networking X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver, 40000 Mbit/s, QSFP+, LC, 9/125 µm, 393700.8" (10000 m), 1310 nm

Description

HPE Networking X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver. Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP+, Fiber optic connector: LC. Certification: MSA. Width: 4.9" (124.5 mm), Depth: 8.9" (226.1 mm), Height: 2.5" (63.5 mm)

Specifications

Performance
Interface type	QSFP+
Maximum data transfer rate	40000 Mbit/s
Fiber optic connector	LC
Auto MDI/MDI-X	Yes
Maximum transfer distance	393700.8" (10000 m)
Wavelength	1310 nm
Fiber cable diameters supported (core/cladding)	9/125 µm
Cabling technology	40GBASE-LR4
Single-mode fiber (SMF) supported	Yes
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Certification	MSA
Certificates
Certification	MSA
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Network
Interface type	QSFP+
Maximum data transfer rate	40000 Mbit/s
Fiber optic connector	LC
Cabling technology	40GBASE-LR4
Weight & dimensions
Width	4.9" (124.5 mm)
Depth	8.9" (226.1 mm)
Height	2.5" (63.5 mm)
Weight	6.35 oz (180 g)
Logistics data
Harmonized System (HS) code	85369010
