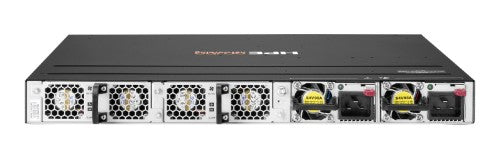

HPE Networking CX6300M 16p 1G 8p Smart Rate 10G Class8 PoE 2p SFP56 50G 2p SFP28 25G TAA Sw

HPE Networking CX6300M 16p 1G 8p Smart Rate 10G Class8 PoE 2p SFP56 50G 2p SFP28 25G TAA Sw, Power over Ethernet (PoE)

Reasons To Buy

AI-ready performance and power

The HPE Aruba Networking CX 6300 Switch Series is a wire-speed solution that uses a fully distributed architecture with Gen7 ASICs that deliver low latency, increased packet buffering, and intelligent power consumption for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.
HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high-performance front-plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100GbE for a total of 200 to 400 Gbps of stacking throughput per switch.
HPE Aruba Networking Virtual Switching Extension (VSX) and an inter-switch link (ISL) provide a high-availability solution that maintains state synchronization and an independent control plane across a 2-member active-active switch design ^[2].
HPE Smart Rate multi-gigabit Ethernet delivers adaptive speed options for Wi-Fi, Internet of Things (IoT), and other clients, alongside Class 4 (30W), Class 6 (60W), and Class 8 (90W) PoE on each port (720W, 1440W, and 2880W maximum PoE budget options).
Additional features include a hibernation mode that enables CX 6300 and CX 6300L (Layer 2-only) switches to schedule downtime to conserve energy. Note: CX 6300L stackable switches are Layer 2-only, balancing scalability, high-capacity, and cost-effective connectivity.

Automation and analytics

The HPE Aruba Networking CX 6300 Switch Series delivers enhanced visibility with built-in analytics for real-time monitoring and a time series database (TSDB) that stores configuration and operational state data, making it available to quickly resolve network issues.
HPE Aruba Networking Central provides secure, AI-native full-stack network management and operations to optimize performance, accelerate troubleshooting, and unify wired networks with Wi-Fi, wide area networks, and more.
HPE Aruba Networking CX Network Analytics Engine (NAE) provides real-time insights and actions, analyzing events that can impact network health and even mitigating problems directly through quarantining to support network, application, system and security operations.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and helps ensure policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and for continual conformance validation.

Full stack management and security

The HPE Aruba Networking CX 6300 Switch Series is supported on HPE Aruba Networking Central for a single point of control management that delivers enhanced network visibility and an expanded AI toolset, addressing the scale and demands of the most mission-critical environments.
Dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better end-user experience and streamlined IT operations. Application recognition and control are available through CX Advanced Feature Pack ^[1].
Switch-to-switch tunnels enable scalable multi-tenancy support with Virtual Extensible Local-Area Networks (VXLAN) to VRF mapping, while allowing policy application through user roles ^[1].
Reduce manual IT operations tasks around initial deployment or ongoing configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).

Deploy in data center topologies

HPE offers customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety of HPE Compute, HPE Storage, HPE Networking solutions supporting virtualization, vSAN, HCI, HPC, MCS, Microsoft, SAP HANA, VMware, Nutanix application and IaaS service offerings.
The 10/25GbE and 40/100GbE CX switches can be deployed as part of an HPE integrated and mixed compute, storage and networking configurations and deployments.
These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.

Description

HPE Networking CX6300M 16p 1G 8p Smart Rate 10G Class8 PoE 2p SFP56 50G 2p SFP28 25G TAA Sw. Switching capacity: 880 Gbit/s. Power over Ethernet (PoE)

Specifications

Data transmission
Switching capacity	880 Gbit/s
Throughput	660 Mpps
Design
Stackable	Yes
Performance
Physical stacking (units)	10
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Flash memory	32000 MB
Built-in processor	Yes
Stackable	Yes
Power
Power consumption note	Up to 211W depending on model
Power supply note	2 field‐replaceable, hot‐swappable power supply slots
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Latency	Depending on model
Performance management	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Memory and processor	CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Fan	Switch has two fan tray slots and comes with two JL669B fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‐swappable. Each fan tray contains two fans.
Weight (imperial)	17.328 lbs
I/O ports	16x 1G Copper ports 8x HPE Smart Rate ports (1G/2.5G/5G/10GbE)
Dimensions (W x D x H) (imperial)	23.23 x 23.5 x 7.13"
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	23.2" (590 mm)
Depth	23.5" (596.9 mm)
Height	7.13" (181.1 mm)
Weight	17.3 lbs (7.86 kg)
