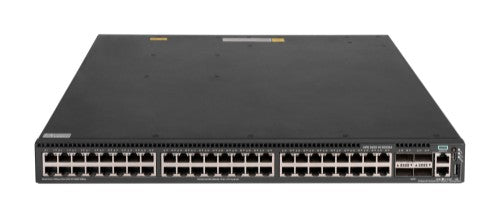

HPE Networking Comware Switch 48P 100M/1G/2.5G/5G/10GBase-T PoE8 4QSFP+ 1 Slot 5600HI

HPE Networking Comware Switch 48P 100M/1G/2.5G/5G/10GBase-T PoE8 4QSFP+ 1 Slot 5600HI, Managed, L2/L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U

Reasons To Buy

Multigigabit PoE8 High Density Switches

HPE Networking Comware Switch Series 5600 HI provides medium and large enterprise networks with 24/48 port 1G/2.5G/5G/10GBASE-T connectivity options, thereby resulting in high density and flexibility.
90W PoE8 supports a wide variety of applications such as virtual desktop infrastructure (VDI) or Internet of Things (IoT).
It delivers up to 600 Mpps of packet forwarding rate and up to 1440 Gbps of port switching capacity for improved network performance.
It supports jumbo frames with a frame size of up to 10000 bytes while improving the performance of large data transfers.
It supports equal-cost multipath that enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth.

Highly Available and Scalable Access Layer Switches

The HPE Networking Comware Switch Series 5600 HI uses IRF that supports virtualization of up to nine physical switches into one logical device for simpler, flatter, and more agile networks.
DRNI, an IEEE standard-based solution, enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also simplifies network topology by virtualizing two physical devices into a logical device.
Dual, redundant, and hot-swappable power supplies maintain a dynamic and highly available network.
Virtual routing redundancy protocol (VRRP) is available where groups of two routers can dynamically back each other up to create highly available routed environments.
VXLAN and EVPN allow greater flexibility to integrate into existing networks, better scalability without redesigning the underlay network, enhanced security to restrict attacks, and improved performance specially in spine-leaf architectures.

Rich QoS Features

The HPE Networking Comware Switch Series 5600 HI supports operations, administration, and maintenance (OAM), MPLS, VPLS, and In-Service Software Upgrade (ISSU) for business continuity and improving manageability.
Advanced classifier based quality of service (QoS) is available to group traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or the entire switch.
Extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR), weighted deficit round robin (WDRR), SP+WDRR, and SP+WRR are supported.
Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic.

Comprehensive Security and Simplified Management

HPE Networking Comware Switch Series 5600 HI supports AAA authentication (including RADIUS authentication) and dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number for increased security.
It supports methods including 802.1X and MAC authentication and encryption for greater device security and policy-driven application authentication, along with per-user access control Lists (ACLs) that provide identity-driven security and access control.
Dynamic ARP protection with functions such as ARP detection and ARP packet validation that block broadcasts from unauthorized hosts, prevent eavesdropping or theft of network data.
Single-pane management via HPE Intelligent Management Center (IMC) provides a consistent network experience and OpenFlow enables integration with mainstream cloud platforms or a third-party controller for flexible network customization and automated management.
Smart Management Center (SmartMC) an embedded network management tool, supports a web-based GUI to simplify operations and facilitate centralized management at no additional cost. It offers features such as configuration backup, software version management, and seamless switch replacement.

Description

HPE Networking Comware Switch 48P 100M/1G/2.5G/5G/10GBase-T PoE8 4QSFP+ 1 Slot 5600HI. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 1440 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1s,.... DC input voltage: 36 - 72 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2/L3
Switch type	Managed
ARP inspection	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
QSFP+ module slots quantity	4
Network
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4000
VLAN support	Yes
10G support	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	1440 Gbit/s
Throughput	600 Mpps
Number of VLANs	4000
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
Performance
Physical stacking (units)	9
Internal memory	2048 MB
Flash memory	1024 MB
Stackable	Yes
Power
Power supply included	Yes
AC input voltage	90 - 264 V
Number of power supply units	2
DC input voltage	36 - 72 V
Power consumption note	Dual AC 2333W
Power source	AC
Power supply note	2 Power Supply Slots (Min1/Max2), JG544A (720W), JG545A (1110W)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	90 W
Other features
Latency	< 5 us (1000Mb), < 3 us (10Gbps) <1.2 us (40Gbps)
Performance management	This switch series includes Smart Management Center (SmartMC) at no additional cost and combined with HPE Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
Memory and processor	2 GB SDRAM; packet buffer size: 6 MB, 1G flash
Weight (imperial)	13.34 lbs
I/O ports	48 x 100M/1G/2.5G/5G/10GBASE-T (PoE8) + 4 x QSFP Plus + 1 expansion slot
Dimensions (W x D x H) (imperial)	1.72 x 17.32 x 18.11"
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Weight & dimensions
Width	1.72" (43.7 mm)
Depth	17.3" (440 mm)
Height	18.1" (460 mm)
Weight	13.3 lbs (6.05 kg)
