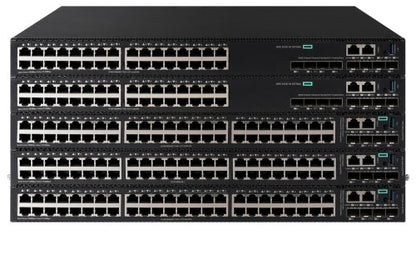

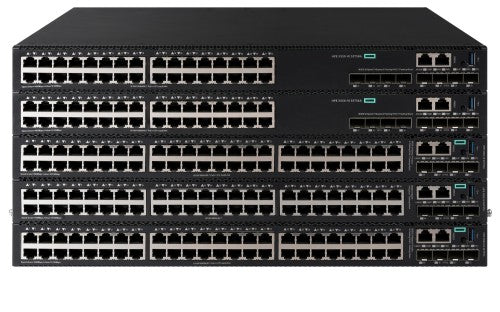

HPE Networking Comware Switch 32p 10M/100M/1G 4p SFP+ 1G/10G 4p SFP28 10G/25G 1-slot 5550HI

HPE Networking Comware Switch 32p 10M/100M/1G 4p SFP+ 1G/10G 4p SFP28 10G/25G 1-slot 5550HI, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting

Reasons To Buy

Simplified Management and Operations

The HPE Networking Comware Switch Series 5550 HI can be seamlessly managed with IMC to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
It supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Scalable, High-Performance L3 Access Switches

The HPE Networking Comware Switch Series 5550 HI provides medium and large enterprise networks with faster CPU, increased memory, flash and packet buffer, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast scale, and MPLS LSP scale.
Improved non-blocking bandwidth and throughput: 744 Gbps of switching capacity and 553 Mpps of forwarding for powerful performance. Scales up to 9 members with Intelligent Resilient Fabric (IRF) stacking.
Expanded the uplink speed to 2x100G via expansion modules.
Improved MPLS LSP scale, comprehensive MPLS support (L3 MPLS VPN, VPLS, EoMPLS, MPLSoGRE) for use as MPLS CE, VXLAN and EVPN.
Support containerization for application hosting.

Resilient and Highly Available Access Networking

The HPE Networking Comware Switch Series 5550 HI uses Intelligent Resilient Framework (IRF) that supports virtualization of up to 9 physical switches into one logical device for simpler, flatter, and more agile networks.
Delivers outstanding resiliency, security, and multiservice support capabilities for traditional large enterprise networks. It supports advanced technologies such as OAM, RRPP, BFD, Multi-level QoS, MPLS, and VPLS.
Dual, redundant, hot-swappable power supplies maintain a dynamic network that delivers up to 2870 watts of industry standard 802.3bt PoE for powered cameras, phones, and wireless access points.
Supports Virtual Routing Redundancy Protocol (VRRP) and mLAG for link redundancy.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) allow greater flexibility to integrate into existing networks, better scalability without redesigning the underlay network, enhanced security to restrict attacks, and improved performance specially in spine-leaf architectures.

Security with Comprehensive Control

The HPE Networking Comware Switch Series 5550 HI supports flexible authentication methods like 802.1X, MAC Authentication and Encryption for greater device security and policy-driven application authentication. Per-user Access Control Lists (ACLs) provide identity-driven security and access control.
Dynamic ARP protection with functions such as ARP Detection and ARP packet validation blocks broadcast from unauthorized hosts and prevents eavesdropping or theft of network data.
Supports industry-standard MACsec 256 encryption for end-to-end data link layer security, providing increased MAC port binding and link group capacity.
Centralized security policy management and network protection with Intelligent Management Center (IMC) which leverages End User Admission Domination (EAD) integrated security policies, network access control and access right control policies to provide a comprehensive integrated security system.
Security with encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, dynamic ARP protection, and RADIUS/HWTACAS.

Description

HPE Networking Comware Switch 32p 10M/100M/1G 4p SFP+ 1G/10G 4p SFP28 10G/25G 1-slot 5550HI. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 32. MAC address table: 128000 entries, Switching capacity: 744 Gbit/s. DC input voltage: 36 - 72 V. Rack mounting

Specifications

Management features
Switch layer	L3
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	32
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
SFP28 ports quantity	4
Network
10G support	Yes
Data transmission
MAC address table	128000 entries
Switching capacity	744 Gbit/s
Throughput	554 Mpps
Packet buffer memory	8 MB
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Performance
Physical stacking (units)	9
Processor frequency	2000 MHz
Memory type	SDRAM / Flash
Internal memory	4000 MB
Flash memory	4000 MB
Processor manufacturer	ARM
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	8 MB
Power
Power supply included	No
AC input voltage	90 - 290 V
DC input voltage	36 - 72 V
Power consumption note	Idle: Single AC: 32W, Dual AC: 39W; Single DC: 34W, Dual DC: 39W Full Load: Single AC: 90W, Dual AC: 96W; Single DC: 90W, Dual DC: 95W
Power source	AC
Other features
Latency	GE: < 5 μs, 10GE: < 3 μs, 40GE: <1.2μs
Performance management	IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC Web GUI
Memory and processor	CPU: ARM 2GHz Quard core 4GB SDRAM, 4GB Flash, 8M Packet buffer
Port speed rating	32x 10/100/1000Base-T ports 4x 1G/10GBase-X SFP+ ports 4x 10G/25GBase-X SFP28 ports 1x RJ45 console port 1x USB 1x OOBM 1 expansion slot
