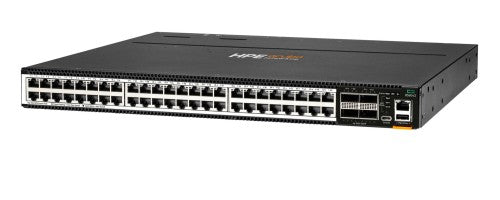

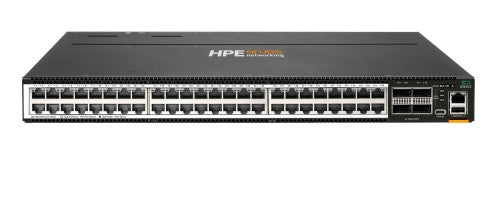

HPE Aruba Networking CX 8360-48XT4C v2 48-port 1G/10GBase-T 4-port 100G QSFP+/QSFP28 Switch

HPE Aruba Networking CX 8360-48XT4C v2 48-port 1G/10GBase-T 4-port 100G QSFP+/QSFP28 Switch, 1760 Gbit/s, 1309 Mpps, 32 MB, 1800 MHz, 32000 MB, 200 - 240 V

Reasons To Buy

Modular cloud-native architecture

HPE Aruba Networking CX 8360 v2 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexities of managing data center networks with automation options to match your IT organization’s operating model.
It proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch.
REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
Continual state synchronization provides superior fault tolerance and high availability with uninterrupted infrastructure, designed for resiliency and upgrades with zero downtime.
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6

HPE Aruba Networking CX Network Analytics Engine (NAE)

HPE Aruba Networking CX 8360 v2 Switch Series utilizes the HPE Aruba Networking CX Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improves network operations.
The time series database (TSDB) is used to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High availability and resiliency

Software processes in the HPE Aruba Networking CX 8360 v2 Switch Series run as microservices that communicate through the state database of the switch.
HPE Aruba Networking Virtual Switching Extension (VSX) provides a robust solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link.

Software-defined automation

The HPE Aruba Networking CX 8360 v2 Switch Series is supported by HPE Aruba Networking Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
It orchestrates a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

Description

HPE Aruba Networking CX 8360-48XT4C v2 48-port 1G/10GBase-T 4-port 100G QSFP+/QSFP28 Switch. Switching capacity: 1760 Gbit/s

Specifications

Data transmission
Switching capacity	1760 Gbit/s
Throughput	1309 Mpps
Packet buffer memory	32 MB
Performance
Processor frequency	1800 MHz
Flash memory	32000 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Power
AC input voltage	200 - 240 V
Power consumption (max)	500 W
Power consumption note	Maximum: 500W Idle: 120W
Power supply note	2 field-replaceable and hot-swappable power supplies depending on the model
Other features
Performance management	RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A
Memory and processor	CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB
Fan	3 field-replaceable and hot-swappable fans
I/O ports	48-port of 100M/ 1/10GBASE-T 4-port of 40/100GbE (QSFP+/QSFP28) HPE Smart Rate support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Depth	1.74" (44.2 mm)
