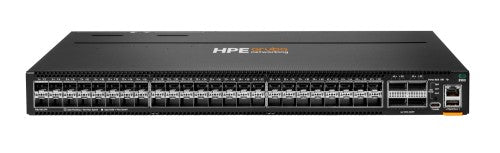

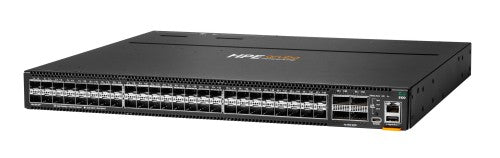

HPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G Front-to-Back 3xFan 2xAC Bundle

HPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G Front-to-Back 3xFan 2xAC Bundle, 1760 Gbit/s, 1800 MHz, 16000 MB, 200 - 240 V, 450 W, Maximum: 450W Idle: 120W

Reasons To Buy

Modular cloud-native architecture

HPE Aruba Networking CX 8100 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexity of managing data center networks with automation options to match your IT organization’s operating model.
The CX 8100 series proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch offering uninterrupted infrastructure designed for resiliency and upgrades with zero downtime.
REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
Continuous telemetry data with Internet Protocol Flow Information Export (IPFIX) and WebSocket subscriptions for event-driven automation.

HPE Aruba Networking CX Network Analytics Engine (NAE)

HPE Aruba Networking CX 8100 Switch Series utilizes NAE for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improves network operations.
Customers can use data from the time series database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High availability and resiliency

All software processes in the HPE Aruba Networking CX 8100 Switch Series run as microservices that communicate through the state database of the switch; there is no direct communication between microservices. Should a software process crash, the impact of that failure will be limited.
The ability of HPE Aruba Networking CX Switch Operating System (AOS-CX) to maintain synchronous state across dual control planes allows a unique high availability solution called HPE Aruba Networking Virtual Switching Extension (VSX).
The VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an interswitch link, maintaining its independent control.

Software-defined automation

The HPE Aruba Networking CX 8100 Switch Series is supported by HPE Aruba Networking Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

Description

HPE Aruba Networking CX 8100 48p SFP+ 25G 4p QSFP28 100G Front-to-Back 3xFan 2xAC Bundle. Switching capacity: 1760 Gbit/s

Specifications

Data transmission
Switching capacity	1760 Gbit/s
Performance
Processor frequency	1800 MHz
Internal memory	16000 MB
Built-in processor	Yes
Power
AC input voltage	200 - 240 V
Power consumption (max)	450 W
Power consumption note	Maximum: 450W Idle: 120W
Power supply note	Bundles include the 2 power supplies (2 x JL600A)
Other features
Performance management	RJ-45 serial and USB-C console RJ-45 Ethernet port USB Type-A
Memory and processor	CPU: Quad Core Arm Cortex A72 @ 1.8 GHz Memory and flash: 16 GB RAM, 32 GB Flash/storage Packet buffer: 32 MB

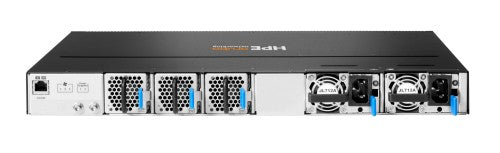

Fan	3 field-replaceable and hot-swappable fans
I/O ports	48 ports of 1/10GbE (SFP/SFP+) 4 ports of 40/100GbE (QSFP+/QSFP28)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Heat dissipation	1535 BTU/h
