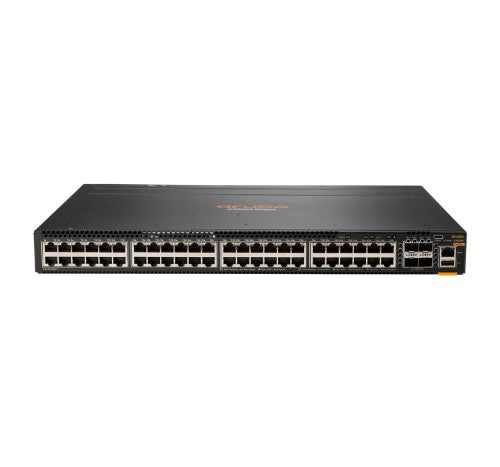

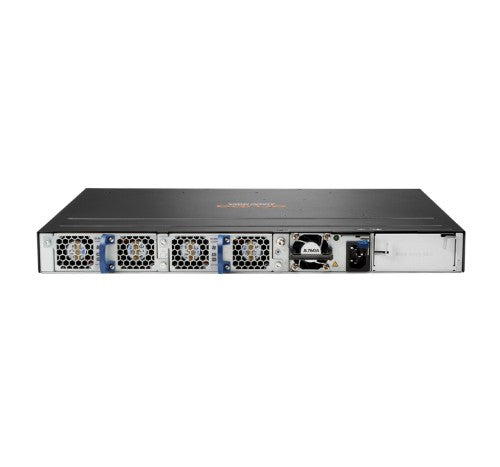

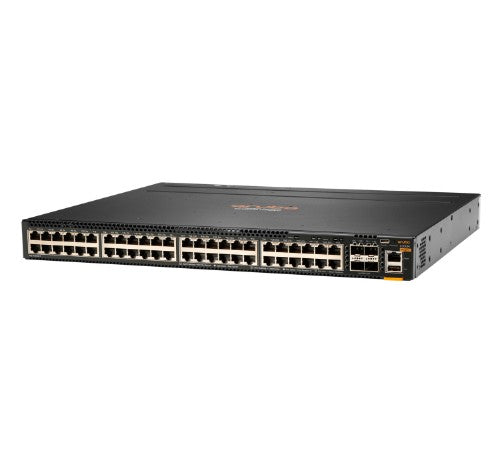

HPE Aruba Networking CX 6300M 48p 1GbE 4p SFP56 Power‑to‑Port 2 Fan Trays 1 PSU Managed L3 Gigabit Ethernet (10/100/1000) 1U

HPE Aruba Networking CX 6300M 48p 1GbE 4p SFP56 Power‑to‑Port 2 Fan Trays 1 PSU, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Description

HPE Aruba Networking CX 6300M 48p 1GbE 4p SFP56 Power‑to‑Port 2 Fan Trays 1 PSU. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: USB. MAC address table: 32768 entries, Switching capacity: 496 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	USB
Fiber ports quantity	4
Fiber optic connector	SFP56
USB Type-A ports quantity	1
USB Type-C ports quantity	1
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
MLD entries	8192
IGMP entries	8192
Optical fiber
Transmission distance (max)	10 km
Fiber optic connector	SFP56
Data transmission
MAC address table	32768 entries
Switching capacity	496 Gbit/s
Throughput	369 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Jumbo frames support	Yes
Packet buffer memory	8 MB
Number of VLANs	4094
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
IGMP entries	8192
DHCP features	DHCP client, DHCP relay
Multicast features
Multicast support	Yes
MLD entries	8192
Protocols
Management protocols	SNMP v2c, SNMP v3, RMON
Routing protocols	BGP, BGP4, OSPFv2, OSPFv3, RIP-2, VRRP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Airflow direction	Back-to-front airflow
Number of fans	2 fan(s)
Performance
Physical stacking (units)	10
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8192 MB
Flash memory	32768 MB
Built-in processor	Yes
Processor model	ARM Cortex-A72
Stackable	Yes
Packet buffer memory	8 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	75 W
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 120000" (0 - 3048 m)
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	Private VLAN
Weight & dimensions
Width	17.4" (442 mm)
Depth	15.2" (385 mm)
Height	1.73" (44 mm)
Weight	12.6 lbs (5.7 kg)
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
