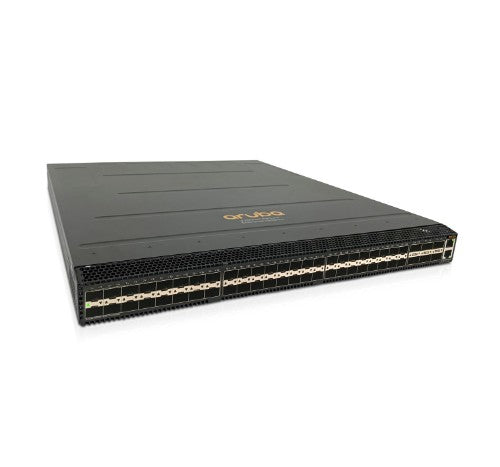

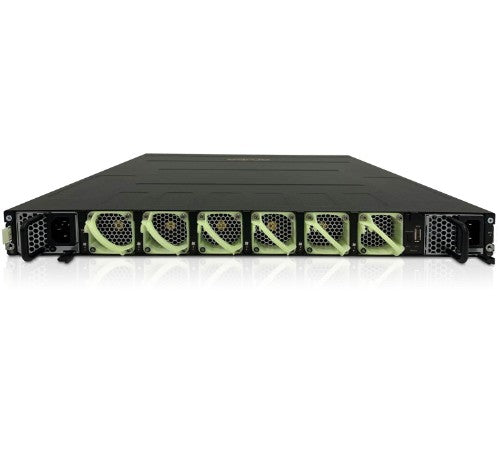

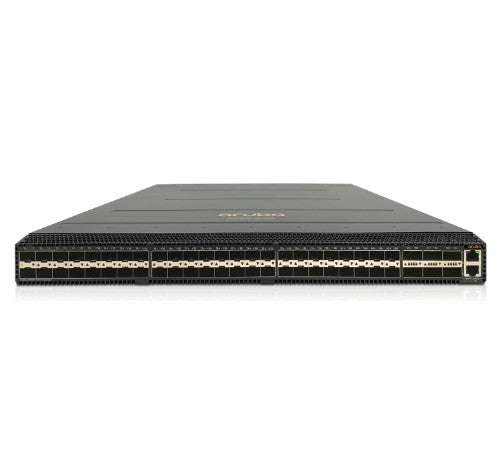

HPE Aruba Networking CX 10000-48Y6C Managed L3 1U

HPE Aruba Networking CX 10000-48Y6C, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking CX 10000-48Y6C. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. MAC address table: 98304 entries, Switching capacity: 3600 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB
Fiber optic connector	QSFP28, SFP28
QSFP28 ports quantity	6
SFP28 ports quantity	48
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4018
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
MAC address table	98304 entries
Switching capacity	3600 Gbit/s
Throughput	1940 Mpps
Packet buffer memory	32 MB
Number of VLANs	4018
Security
IGMP snooping	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP server
Multicast features
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Protocols
Routing protocols	BGP4, OSPF, OSPFv3, RIP-2, RIPng
Design
Rack mounting	Yes
Form factor	1U
Ventilation system	Back-to-front airflow
Number of fans	6 fan(s)
Performance
Processor frequency	2900 MHz
Memory type	RAM / Flash
Internal memory	32768 MB
Flash memory	8192 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	550 W
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	1876 BTU/h
Virtual LAN features
Number of VLANs	4018
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	17.3" (438.2 mm)
Depth	20.1" (511 mm)
Height	1.75" (44.4 mm)
Weight	21.5 lbs (9.75 kg)
Optical fiber
Fiber optic connector	QSFP28, SFP28
Other features
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
