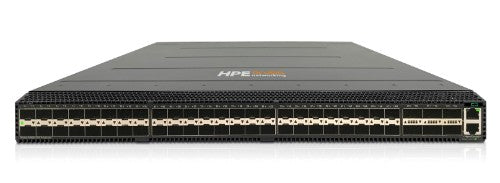

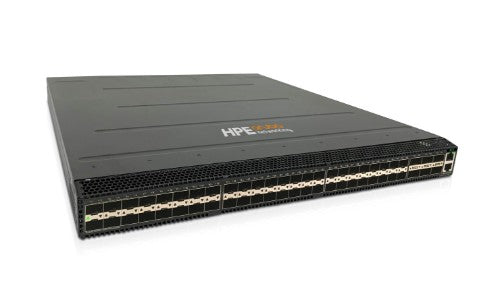

HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle

HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle, 3200 Gbit/s, 2000 Mpps, BGP4, OSPF, RIP, RIPng, RIP-2, 2900 MHz, 100 - 240 V, 753 W

Reasons To Buy

Improves network bandwidth and performance

The HPE Aruba Networking CX 10000 Switch Series offers a unique blend of performance and scale for distributing advanced networking and security services where it is impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point.
Simplify application of services at the services network access layer edge.
All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future. CX 10000 models provide 3.2 Tbps for bidirectional switching and 2000 Mpps for forwarding. CX 10040 models offer 8 Tbps of switching capacity, 1.6 Tbps of L4 stateful inspection.

Limit security appliance sprawl and cost

The CX 10000 series improves network bandwidth and performance by not having to trombone local traffic to a centralized chokepoint, helping to improve security posture while limiting appliance sprawl complexity and cost.
The CX 10000 series provides a compelling architectural alternative that distributes these advanced services to the data center edge, with unified network and security automation and policy management.

Extend zero trust and microsegmentation

The HPE Aruba Networking CX 10000 Switch Series allows operators to extend industry-standard leaf-spine networking with 1.6T of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services delivered inline across every port closer to critical enterprise applications.
Organizations with dedicated SecOps teams can leverage Pensando policy and services manager (PSM) based on specific security roles and responsibilities for increased scalability and fault tolerance.
Extends zero trust segmentation deeper into the data center for any type of host.
Optimizes network traffic flows, bandwidth, and performance, which reduces operational complexity associated with service switching.
The switch series allow operators to extend industry-standard leaf-spine networking with distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline, all the time, on every access port, closer to where critical enterprise applications run.

Simplify operations

The CX 10000 series is integrated with HPE Aruba Networking Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
The CX 10000 series integrates through Rest API, provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.
The switch series is based on the HPE Aruba Networking CX Operating System(AOS-CX), a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.

Description

HPE Aruba Networking CX 10000 48p SFP28 10G/25G 6p QSFP28 100G Front-to-Back 6xFan 2xPSU TAA Bundle. Switching capacity: 3200 Gbit/s

Specifications

Data transmission
Switching capacity	3200 Gbit/s
Throughput	2000 Mpps
Static route	Yes
Protocols
Routing protocols	BGP4, OSPF, RIP, RIPng, RIP-2
Design
Stackable	Yes
Performance
Processor frequency	2900 MHz
Built-in processor	Yes
Stackable	Yes
Power
AC input voltage	100 - 240 V
Power consumption (max)	753 W
Power consumption note	Maximum: 753W Idle: 400W
Power supply note	Field-replaceable, hot-swappable, and up to two power supplies
Other features
Latency	<1 μs (without redirect) <5 μs (with redirect)
Performance management	CLI REST API SNMP HPE Aruba Networking Fabric Composer HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking Central RJ-45 serial port AMD Pensando PSM Micro USB console
Memory and processor	CPU: Intel Xeon D-1637 6-core processor at 2.90 GHz Switch memory, drive and flash: 32 GB RAM, 64 GB SSD

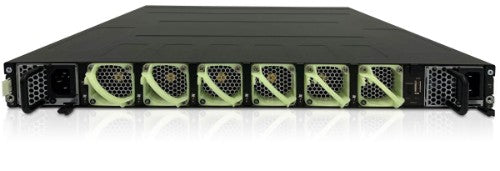

Fan	Field-replaceable, hot-swappable and up to six fans
I/O ports	48 x 25GbE SFP+, 6 x 100Gb QSFP
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Heat dissipation	1.876 BTU/h
