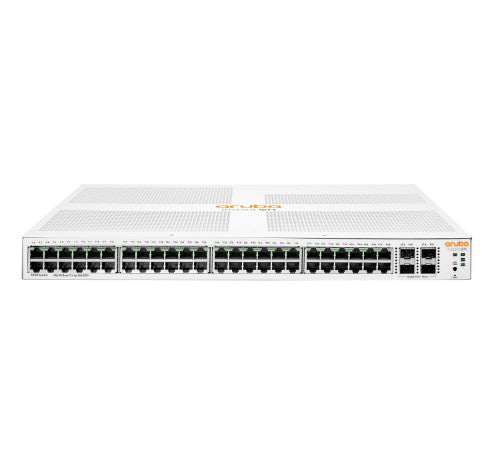

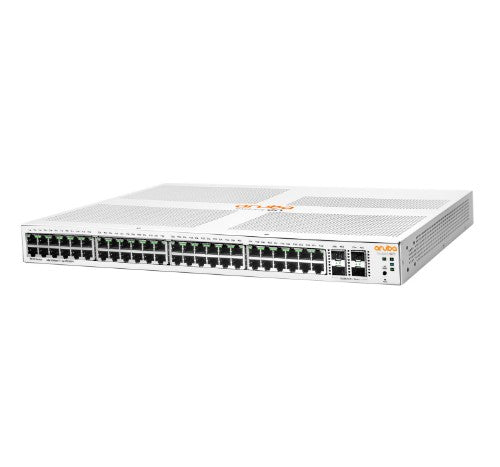

HPE Aruba Networking Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) 1U White

HPE Aruba Networking Aruba Instant On 1930, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Description

HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Number of VLANs	256
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
Number of VLANs	256
VLAN support	Yes
Data transmission
Number of VLANs	256
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Throughput	130.95 Mpps
Latency (10-100 Mbps)	4.5 µs
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	1.2 µs
Packet buffer memory	1.5 MB
Performance
Stackable	No
Packet buffer memory	1.5 MB
Processor frequency	800 MHz
Memory type	SDRAM
Internal memory	512 MB
Flash memory	256 MB
Processor model	ARM Cortex-A9
Management features
Switch layer	L2+
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Design
Rack mounting	Yes
Stackable	No
Product colour	White
Form factor	1U
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	36.9 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	11.1" (282.4 mm)
Height	1.73" (43.9 mm)
Weight	6.9 lbs (3.13 kg)
