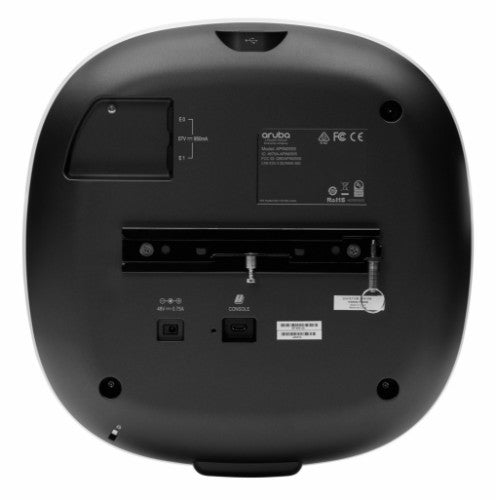

HPE Aruba Networking Aruba AP-555 (RW) 5950 Mbit/s White Power over Ethernet (PoE)

Aruba AP-555 (RW) Dual Radio 8x8:8 / 4x4:4 802.11ax Internal Antennas Unified Campus AP

Description

The Aruba 550 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations are designed to deliver high performance connectivity for extreme high-density deployments of mobile and IoT.

The 550 Series is designed to simultaneously serve multiple clients and traffic types with dual radio (8x8 + 4x4 MIMO) and optional tri-radio mode, boosting overall network performance by up to 4X versus 802.11ac APs.

In addition to the benefits that 802.11ax delivers, the 550 Series provide differentiated capabilities which include AI-powered Wi-Fi RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation. Green AP mode offers AI-powered energy savings of up to 70%.

Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.

Smart power management
Aruba's unique Smart PoE allows for the use of existing switching infrastructure to power up APs

IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth devices and applications.

Specifications

Performance
Maximum data transfer rate	5950 Mbit/s
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Modulation	16PSK, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO	Yes
Features
Maximum data transfer rate	5950 Mbit/s
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Modulation	16PSK, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1150 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Security
Security algorithms	WMM, WPA, WPA2
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	38.2 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5.5 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	10.2" (260 mm)
Depth	10.2" (260 mm)
Height	2.28" (58 mm)
Weight	3.46 lbs (1.57 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
Logistics data
Harmonized System (HS) code	85176990
