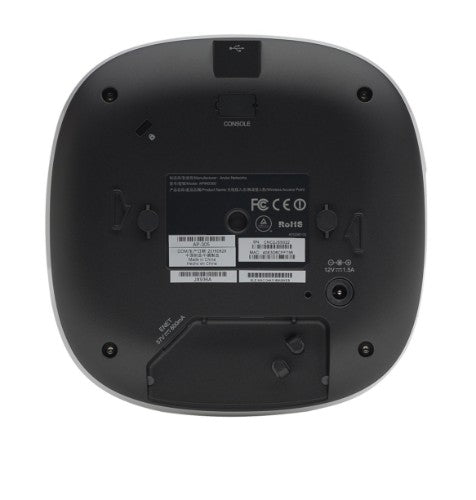

HPE Aruba Networking Aruba AP-305 1600 Mbit/s White Power over Ethernet (PoE)

Aruba AP-305 802.11n/ac 2x2:2/3x3:3 MU-MIMO Dual Radio Integrated Antenna AP

Description

The Aruba 300 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.
Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 300 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding
Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows 300 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller
Remote AP (RAP) for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.

Specifications

Performance
Maximum data transfer rate	1600 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	1600 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Security
Security algorithms	Not supported
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	13 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	3
Antenna gain level (max)	5.4 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Weight & dimensions
Width	6.5" (165 mm)
Depth	6.5" (165 mm)
Height	1.5" (38 mm)
Weight	16.2 oz (460 g)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
