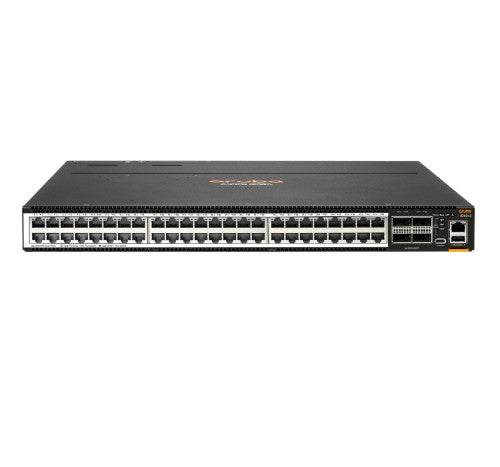

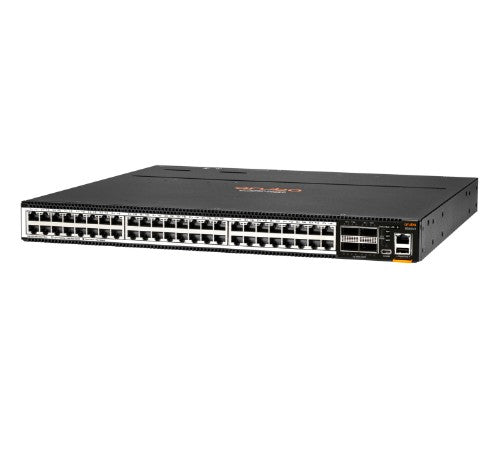

HPE Aruba Networking Aruba 8360-48XT4C v2 Managed L3 10G Ethernet (100/1000/10000) 1U

HPE Aruba Networking Aruba 8360-48XT4C v2, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 8360-48XT4C v2. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 1760 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
IGMP entries	7000
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4094
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	100,1000,10000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Data transmission
Number of VLANs	4094
MAC address table	212992 entries
Switching capacity	1760 Gbit/s
Throughput	2678 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Performance
Packet buffer memory	32 MB
Processor frequency	1800 MHz
Memory type	RAM / Flash
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
QSFP+ module slots quantity	4
Console port	RJ-45/USB Type-C
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
IGMP entries	7000
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Form factor	1U
Ventilation system	Front-to-back airflow
Airflow direction	Front-to-back airflow
Number of fans	3 fan(s)
Redundant fans support	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	500 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Heat dissipation	1706 BTU/h
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	16" (406.4 mm)
Height	1.73" (44 mm)
Weight	18.8 lbs (8.55 kg)
Other features
Ethernet LAN data rates	100,1000,10000,40000,100000 Mbit/s
