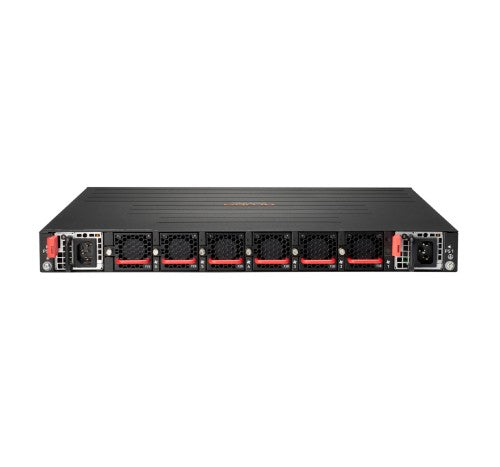

HPE Aruba Networking Aruba 8325-32C Managed L3 1U

HPE Aruba Networking Aruba 8325-32C, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 8325-32C. Switch type: Managed, Switch layer: L3. Console port: RJ-45/micro-USB. MAC address table: 98304 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/micro-USB
Fiber optic connector	QSFP+, QSFP28
QSFP28 ports quantity	32
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	40000,100000 Mbit/s
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	98304 entries
Switching capacity	6400 Gbit/s
Throughput	1905 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIPng
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Rack mounting	Yes
Form factor	1U
Ventilation system	Front-to-back airflow
Airflow direction	Front-to-back airflow
Number of fans	6 fan(s)
Redundant fans support	Yes
Performance
Processor frequency	2200 MHz
Memory type	SDRAM / Flash
Internal memory	16384 MB
Flash memory	8192 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	550 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.3" (438.4 mm)
Depth	20.3" (515.1 mm)
Height	1.7" (43.2 mm)
Weight	20.9 lbs (9.5 kg)
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Optical fiber
Fiber optic connector	QSFP+, QSFP28
Other features
Ethernet LAN data rates	40000,100000 Mbit/s
