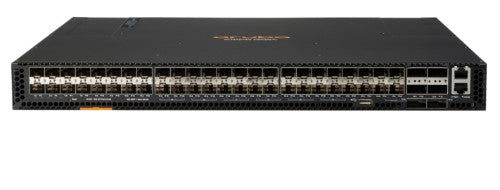

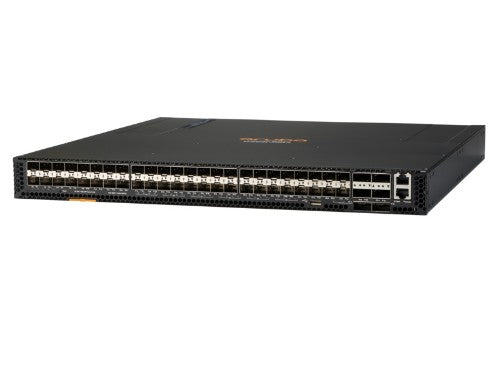

HPE Aruba Networking Aruba 8320 Managed L3 1U Black

HPE Aruba Networking Aruba 8320, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 8320. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 98304 entries, Switching capacity: 2500 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Cable types supported	Fiber
VLAN support	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Stackable	Yes
Packet buffer memory	16 MB
Processor frequency	2000 MHz
Noise level	61.1 dB
Internal memory	16384 MB
Flash memory	8192 MB
Mean time between failures (MTBF)	314721 h
Built-in processor	Yes
Harmonized System (HS) code	85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
SFP+ module slots quantity	48
QSFP+ module slots quantity	6
Console port	RJ-45
USB 2.0 ports quantity	1
Data transmission
MAC address table	98304 entries
Switching capacity	2500 Gbit/s
Maximum data transfer rate	40 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	16 MB
Security
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	5 fan(s)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	357 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	17.4" (442 mm)
Depth	19.9" (505.5 mm)
Height	1.7" (43.2 mm)
Weight	20.7 lbs (9.4 kg)
Logistics data
Harmonized System (HS) code	85176990
