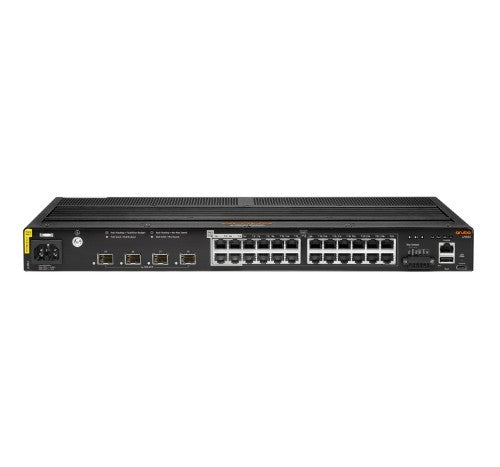

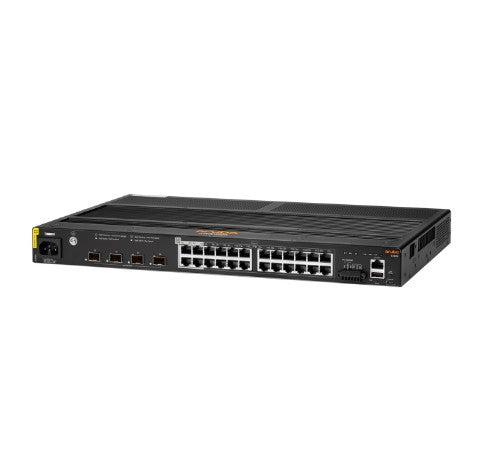

HPE Aruba Networking Aruba 4100i Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

HPE Aruba Networking Aruba 4100i, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 4100i. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch layer	L2
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Stackable	No
Packet buffer memory	12.38 MB
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	32000 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-C
Data transmission
MAC address table	8192 entries
Switching capacity	128 Gbit/s
Throughput	95 Mpps
Latency (1 Gbps)	1.585 µs
Latency (10 Gbps)	1.243 µs
Jumbo frames support	Yes
Packet buffer memory	12.38 MB
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
Security algorithms	SSH, SSH-2
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	No
Product colour	Black
Form factor	1U
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	240 W
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 165354.3" (0 - 4200 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Weight & dimensions
Width	17.5" (444.5 mm)
Depth	12" (304.4 mm)
Height	1.73" (44 mm)
Weight	14.3 lbs (6.47 kg)
