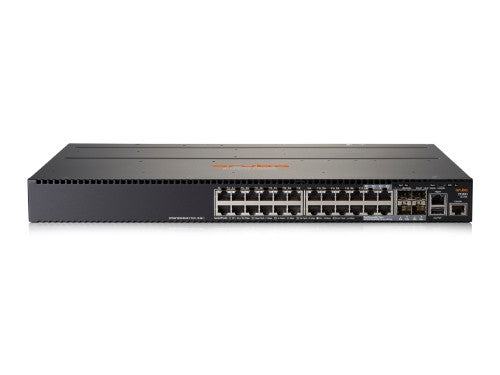

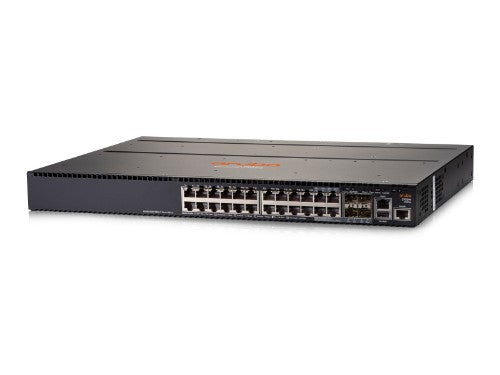

HPE Aruba Networking Aruba 2930M 24G 1-slot Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray

HPE Aruba Networking Aruba 2930M 24G 1-slot, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 2930M 24G 1-slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. Full duplex. MAC address table: 32768 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	32768 entries
Switching capacity	128 Gbit/s
Throughput	95.2 Mpps
Latency (10-100 Mbps)	11.8 µs
Latency (1 Gbps)	3.1 µs
Latency (10 Gbps)	3.4 µs
Packet buffer memory	12.38 MB
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	12.38 MB
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	93 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	145 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	12.8" (324.3 mm)
Height	1.73" (43.9 mm)
Weight	9.81 lbs (4.45 kg)
Logistics data
Harmonized System (HS) code	85176990
