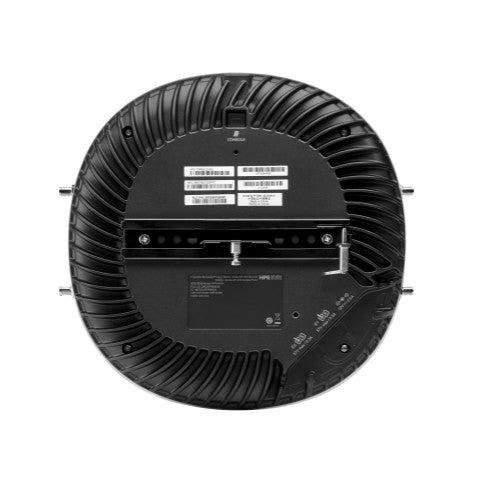

HPE Aruba Networking AP-634 (US) Tri-radio 2x2:2 Wi-Fi 6E External Antennas Campus AP

HPE Aruba Networking AP-634 (US) Tri-radio 2x2:2 Wi-Fi 6E External Antennas Campus AP, 2.4 GHz, 5 GHz, 6 GHz, 2500 Mbit/s, AES, TKIP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, 2500,5000 Mbit/s

Reasons To Buy

More Capacity and Wider Channels with Wi-Fi 6E

The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
It is designed for low power indoor (LPI) environments.

Less Interference and Fewer Coverage Gaps

The HPE Aruba Networking 630 Series Campus Access Points provide comprehensive tri-band coverage using three radios.
The unique ultra tri-band (UTB) filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
Since only Wi-Fi 6E devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.

Extends capabilities of Wi-Fi 6 (802.11ax) APs

HPE Aruba Networking 630 Series Campus Access Points are based on the 802.11ax standard so multiuser efficiency and security features are applied to Wi-Fi 6E.
Unique capabilities include HPE Aruba Networking ClientMatch, advanced cellular coexistence (ACC), and intelligent power monitoring (IPM) to optimize user experience and energy use.

Ensures Business Continuity and High Availability

High availability with two HPE Smart Rate Ethernet ports offer true hitless failover for both data and power.
Cloud, controller, or controllerless operation modes address all campus, branch, and remote use cases.

Description

HPE Aruba Networking AP-634 (US) Tri-radio 2x2:2 Wi-Fi 6E External Antennas Campus AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2500 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 2500,5000 Mbit/s. Power over Ethernet (PoE). Product color: White

Specifications

Performance
Maximum data transfer rate	2500 Mbit/s
Ethernet LAN data rates	2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
MIMO	Yes
Compatible operating systems	AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor.
Features
6 GHz	Yes
Maximum data transfer rate	2500 Mbit/s
Ethernet LAN data rates	2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Bluetooth	Yes
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1200 Mbit/s
Maximum data transfer rate (5 GHz)	2500 Mbit/s
Maximum data transfer rate (6 GHz)	1200 Mbit/s
MACsec support	No
Compatible operating systems	AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor.
Security
Security algorithms	AES, TKIP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Pole, Wall
Product colour	White
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
Recommended usage	Indoor
Antenna
Antenna type	External
Antenna connector type	RP-SMA
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Weight & dimensions
Width	8.66" (220 mm)
Depth	1.97" (50 mm)
Height	8.66" (220 mm)
Weight	2.87 lbs (1.3 kg)
Other features
I/O ports	E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Weight (imperial)	2.86 lbs
System requirements
Compatible operating systems	AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor.
