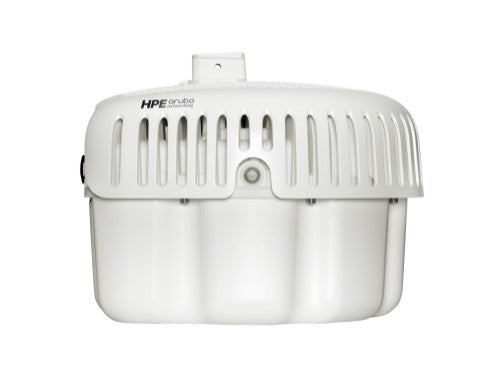

HPE Aruba Networking AP-584 (IL) Dual Radio 4x4 802.11ax External Antennas Unified Outdoor AP

HPE Aruba Networking AP-584 (IL) Dual Radio 4x4 802.11ax External Antennas Unified Outdoor AP, 2.4 GHz, 5 GHz, 2970 Mbit/s, WPA2, WPA3, 1000,5000 Mbit/s

Reasons To Buy

High Performance Wi-Fi 6 APs Designed For Outdoors

HPE Aruba Networking 580 Series Outdoor Access Points are ideal for large scale outdoor environments including universities, large enterprises, and industrial applications and provide peak aggregate data rate of 2.97 Gbps.
The AP includes options for 5G Ethernet, SFP+, and PSE out for flexible connectivity.
It includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
It offers enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives a strong radio signal.
Dual redundant power/port failover and support for AC provide high availability with uninterrupted performance.

Weatherproof and Temperature Hardened

HPE Aruba Networking 580 Series Outdoor Access Points can withstand extreme temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40°C to +65°C, including full sun deployments.
The 580 series is IP66/67 rated with industrial surge protection.
The 580 series includes models with integrated, high-power antennas for increased performance and coverage, as well as a connectorized model that supports external antennas.

Industrial IoT Ready

HPE Aruba Networking 580 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
The 580 series provides high power Bluetooth and 802.15.4/Zigbee radios for increased IoT coverage.
The intelligent power monitoring (IPM) feature provides the ability to enable or disable capabilities based on available Power over Ethernet (PoE) power.
The target wake time (TWT) improves the battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Enhanced Security

The HPE Aruba Networking 580 Series Outdoor Access Points offer enhanced security with dynamic segmentation to remove the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
The 580 series simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.

Description

HPE Aruba Networking AP-584 (IL) Dual Radio 4x4 802.11ax External Antennas Unified Outdoor AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2970 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 1000,5000 Mbit/s. Power over Ethernet (PoE). Product color: White

Specifications

Performance
Maximum data transfer rate	2970 Mbit/s
Ethernet LAN data rates	1000,5000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	Wi-Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)
MIMO type	Single User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System OS10
Features
6 GHz	No
Maximum data transfer rate	2970 Mbit/s
Ethernet LAN data rates	1000,5000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Bluetooth	Yes
Bluetooth version	5.0
MIMO type	Single User MIMO
MIMO	Yes
Trusted Platform Module (TPM)	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System OS10
Security
Security algorithms	WPA2, WPA3
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
USB connector type	USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (typical)	71 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Pole, Wall
International Protection (IP) code	IP66, IP67
Product colour	White
Certification	Wi-Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)
Recommended usage	Outdoor

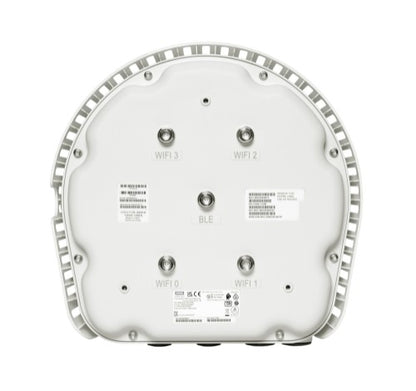

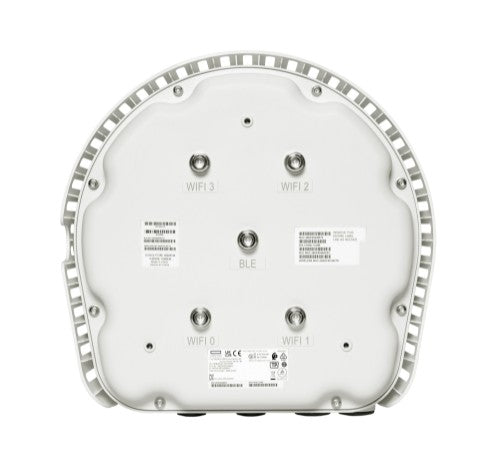

Antenna
Antenna type	External
Number of connectors	4
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	Wi-Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	12.8" (324 mm)
Depth	12.3" (312 mm)
Height	9.61" (244 mm)
Weight	12.2 lbs (5.52 kg)
Package width	16.1" (410 mm)
Package depth	12.7" (322 mm)
Package height	17" (433 mm)
Package weight	16.7 lbs (7.56 kg)
Packaging data
Package width	16.1" (410 mm)
Package depth	12.7" (322 mm)
Package height	17" (433 mm)
Package weight	16.7 lbs (7.56 kg)
Other features
I/O ports	Ethernet wired port (RJ-45) Ethernet wired port (RJ-45) PSE Ethernet wired port (SFP+) USB-C console interface
Weight (imperial)	12.17 lbs
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System OS10
