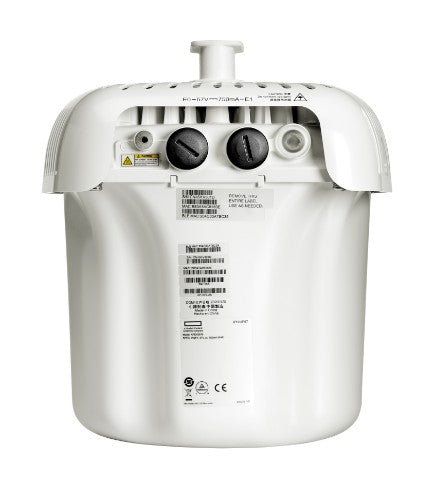

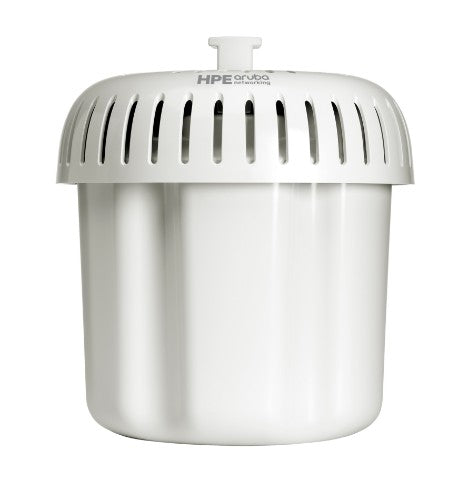

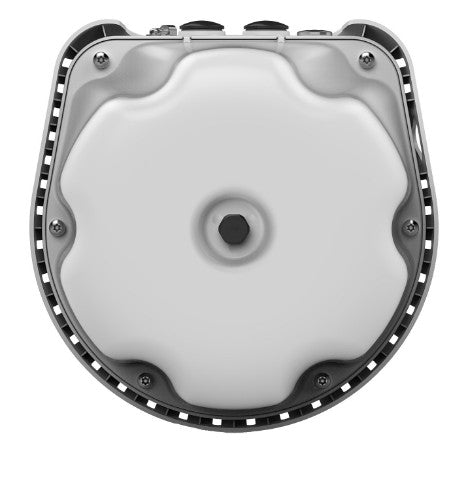

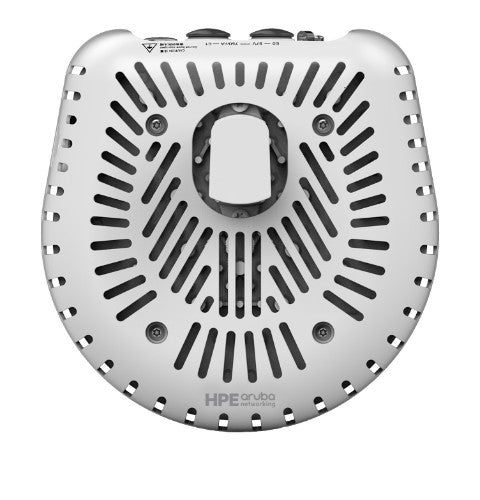

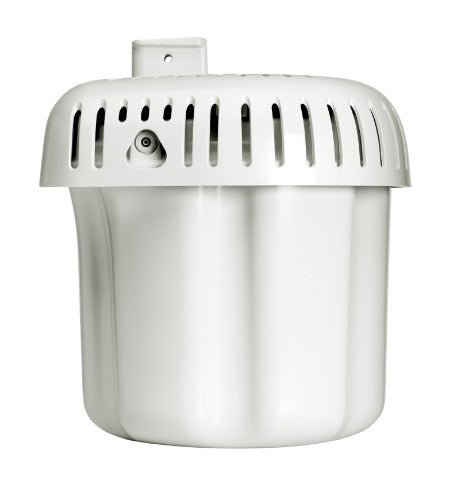

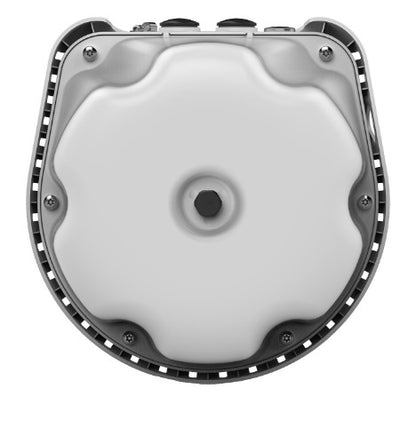

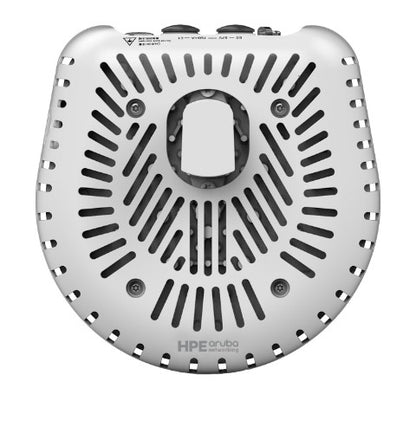

HPE Aruba Networking AP-575EX (RW) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Omni HazLoc Access Point

HPE Aruba Networking AP-575EX (RW) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Omni HazLoc Access Point, 2.4 GHz, 5 GHz, 4800 Mbit/s, WPA2, WPA3, 1000,2500,5000 Mbit/s

Reasons To Buy

Ruggedized Outdoor Wi-Fi 6

HPE Aruba Networking 570EX Series Hazardous Location Access Points provide Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations and provide up to 2.69 Gbps combined peak data rate. It provides high-performance wireless connectivity for outdoor hazardous locations.
The series supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO (MU-MIMO), and target wait time (TWT).
It offers enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives a good radio signal.

Deploy In Hazardous Locations

HPE Aruba Networking 570EX Series Hazardous Location Access Points are purpose-built to survive in some of the harshest outdoor hazardous locations and can withstand extreme temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40 ̊C to +65 ̊C, including full sun deployments.
The series is Class 1 Division 2 and ATEX Zone 2 certified for the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.

Enhanced Security

HPE Aruba Networking 570EX Series Hazardous Location Access Points offer enhanced security with dynamic segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
The 570EX series offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
It simplifies policy enforcement by using a PEF to encapsulate traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking APs include an installed trusted platform module (TPM).

IoT Ready

HPE Aruba Networking 570EX Series Hazardous Location Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Description

HPE Aruba Networking AP-575EX (RW) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Omni HazLoc Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 32 W

Specifications

Performance
Maximum data transfer rate	4800 Mbit/s
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.38 Gbps
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	CB Scheme Safety, cTUVus Wi‐Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
Features
6 GHz	No
Maximum data transfer rate	4800 Mbit/s
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.38 Gbps
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Bluetooth	Yes
Bluetooth version	5.0
Maximal-Ratio Combining (MRC)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
MIMO	Yes
Trusted Platform Module (TPM)	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
Security
Security algorithms	WPA2, WPA3
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
USB connector type	USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	32 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Pole, Wall
International Protection (IP) code	IP66, IP67
Product colour	White
Certification	CB Scheme Safety, cTUVus Wi‐Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2
Recommended usage	Outdoor
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	CB Scheme Safety, cTUVus Wi‐Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Software
Maximal-Ratio Combining (MRC)	Yes
Cyclic Shift Diversity (CSD)	Yes
Cyclic Delay Diversity (CDD)	Yes
Weight & dimensions
Width	9.06" (230 mm)
Depth	9.45" (240 mm)
Height	10.6" (270 mm)
Weight	5.29 lbs (2.4 kg)
Other features
I/O ports	E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface
Weight (imperial)	5.3 lbs
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
System requirements
Compatible operating systems	HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10
