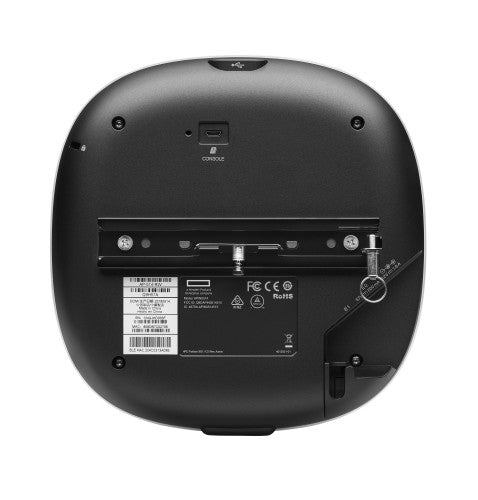

HPE Aruba Networking AP-514 (JP) TAA Dual Radio 4x4/2x2 802.11ax Ext Antennas Unified Campus AP

HPE Aruba Networking AP-514 (JP) TAA Dual Radio 4x4/2x2 802.11ax Ext Antennas Unified Campus AP, 2.4 GHz, 5 GHz, 1000,2500,5000 Mbit/s

Reasons To Buy

Wi-Fi 6 Performance Ideal for Campus Deployment

The HPE Aruba Networking 510 Series Campus Access Points deliver a maximum combined data rate of 2.69 Gbps with up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (VHT160).
The 510 series supports Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the strong radio signal.
It supports fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.

Cloud Management and Ready for IoT

HPE Aruba Networking 510 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
The 510 series includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.
The target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Simple and Secure Access

HPE Aruba Networking 510 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.
WPA3 and Enhanced Open (OWE) security increase enterprise-level security by providing stronger guest access protections without increasing complexity.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

Description

HPE Aruba Networking AP-514 (JP) TAA Dual Radio 4x4/2x2 802.11ax Ext Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 1000,2500,5000 Mbit/s

Specifications

Performance
Ethernet LAN data rates	1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	UL2043 plenum rating Bluetooth SIG Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later.
Features
Ethernet LAN data rates	1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later.
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	UL2043 plenum rating Bluetooth SIG Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location
Recommended usage	Indoor
Antenna
Antenna connector type	RP-SMA
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Bluetooth SIG Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	7.87" (200 mm)
Depth	7.87" (200 mm)
Height	1.81" (46 mm)
Weight	28.6 oz (810 g)
Other features
I/O ports	E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later.
