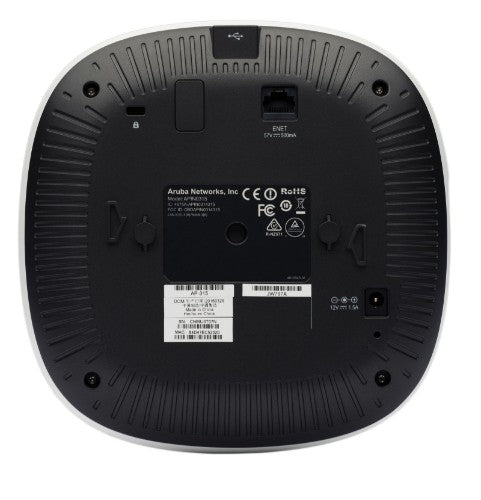

HPE Aruba Networking AP-315 2033 Mbit/s White Power over Ethernet (PoE)

Aruba AP-315 802.11n/ac 2x2:2/4x4:4 MU-MIMO Dual Radio Integrated Antenna AP

Description

The Aruba 310 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in dense office environments.

These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.

These APs have an integrated BLE Beacon to remotely manage battery-powered Aruba Beacons. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Specifications

Performance
Maximum data transfer rate	2033 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	2033 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	DSSS, OFDM
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	1733 Mbit/s
Security
Security algorithms	Not supported
Ports & interfaces
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	14.4 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	6 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	7.17" (182 mm)
Depth	7.09" (180 mm)
Height	1.89" (48 mm)
Weight	22.9 oz (650 g)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Harmonized System (HS) code	85176990
