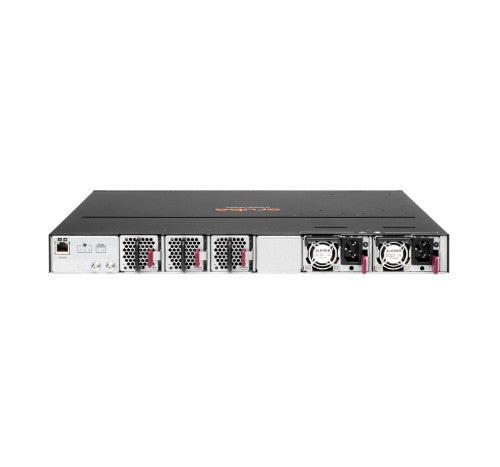

HPE Aruba Networking 8360-24XF2C Managed L3 1U Black

HPE Aruba Networking 8360-24XF2C, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking 8360-24XF2C. Switch type: Managed, Switch layer: L3. Console port: RJ-45. MAC address table: 212992 entries, Switching capacity: 2400 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	24
QSFP+ module slots quantity	2
Console port	RJ-45
Network
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Ethernet LAN data rates	1000,10000,40000,100000 Mbit/s
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	212992 entries
Switching capacity	2400 Gbit/s
Throughput	2000 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Number of VLANs	4094
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP client, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP 2, SNMP 3, RMON, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	3 fan(s)
Redundant fans support	Yes
Performance
Processor frequency	1800 MHz
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Packet buffer memory	32 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (max)	550 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	16" (406.4 mm)
Height	1.73" (44 mm)
Weight	17.8 lbs (8.07 kg)
Other features
Ethernet LAN data rates	1000,10000,40000,100000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
