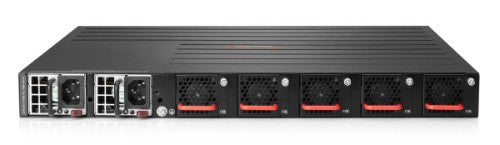

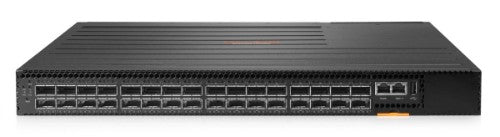

HPE Aruba Networking 8320 32 40G QSFP+ with X472 5 Fans 2 PS Managed L3 1U

HPE Aruba Networking 8320 32 40G QSFP+ with X472 5 Fans 2 PS, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking 8320 32 40G QSFP+ with X472 5 Fans 2 PS. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 98304 entries, Switching capacity: 2500 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
QSFP+ module slots quantity	32
Console port	RJ-45
USB 2.0 ports quantity	1
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Port mirroring	Yes
IP routing	Yes
10G support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
MAC address table	98304 entries
Switching capacity	2500 Gbit/s
Maximum data transfer rate	40 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	16 MB
Security
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Protocols
Routing protocols	BGP, OSPF
Design
Rack mounting	Yes
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	5 fan(s)
Performance
Processor frequency	2000 MHz
Noise level	79 dB
Internal memory	16384 MB
Flash memory	8192 MB
Mean time between failures (MTBF)	296526 h
Built-in processor	Yes
Packet buffer memory	16 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	310 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.2" (438 mm)
Depth	20.3" (515 mm)
Height	1.71" (43.5 mm)
Weight	21.4 lbs (9.7 kg)
Logistics data
Harmonized System (HS) code	85176990
