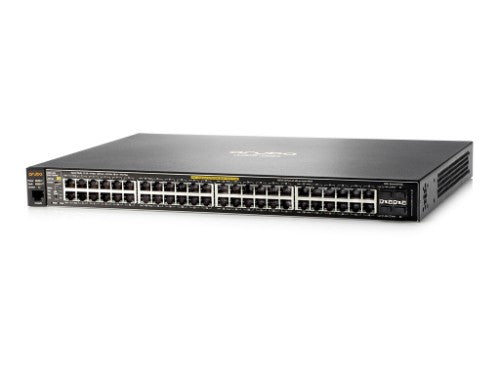

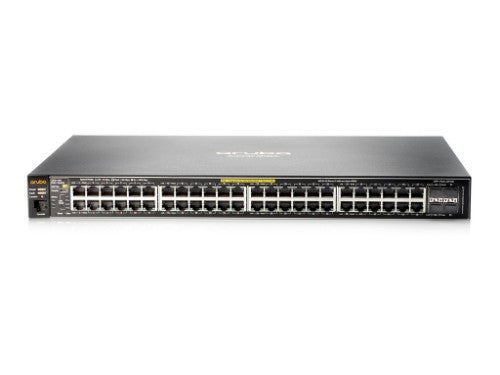

HPE Aruba Networking 2530 48 PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U

HPE Aruba Networking 2530 48 PoE+, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, Wall mountable

Description

HPE Aruba Networking 2530 48 PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Number of VLANs	512
VLAN support	Yes
Port mirroring	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Half duplex	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	17.6 Gbit/s
Jumbo frames	9220
Throughput	13 Mpps
Latency (10-100 Mbps)	6.6 µs
Latency (1 Gbps)	2.2 µs
Jumbo frames support	Yes
Packet buffer memory	3 MB
Number of VLANs	512
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
Protocols
Management protocols	SNMPv1, SNMPv2c, SNMPv3
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Wall mountable	Yes
Performance
Virtual stacking (units)	16
Processor frequency	800 MHz
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	128 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	3 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	441 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	382 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Virtual LAN features
Number of VLANs	512
VLAN support	Yes
Weight & dimensions
Width	17.4" (442 mm)
Depth	12.7" (322.6 mm)
Height	1.75" (44.5 mm)
Weight	10.1 lbs (4.58 kg)
