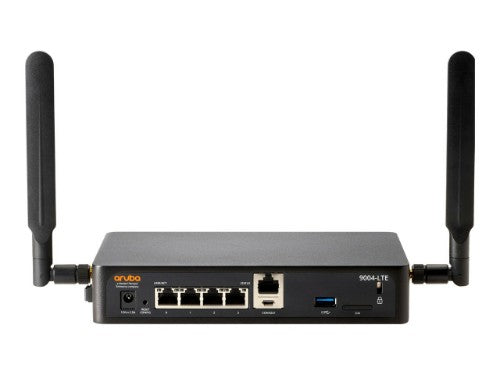

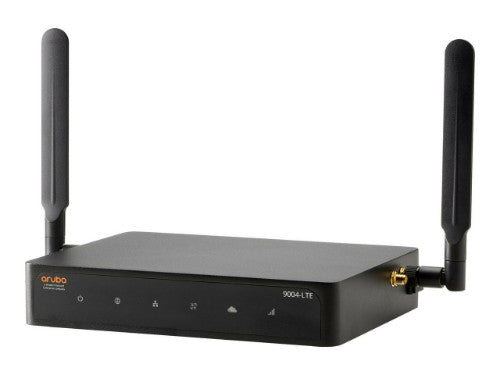

HPE Aruba 9004 (JP) 4-Port 10/100/1000BASE-T LTE Branch gateway/controller 10, 100, 1000 Mbit/s

HPE Aruba 9004 (JP) 4-Port 10/100/1000BASE-T LTE Branch, Black, Desktop/Rack mounting, LAN, Status, System, WAN, External, SMA, 10,100,1000 Mbit/s

Description

HPE Aruba 9004 (JP) 4-Port 10/100/1000BASE-T LTE Branch. Product color: Black, Mounting type: Desktop/Rack mounting, LED indicators: LAN, Status, System, WAN. Antenna type: External, Antenna connector type: SMA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Mobile network generation: 4G, Data network: LTE. Console port: micro USB, RJ-45. Power consumption (max): 25 W, Input voltage: 90 - 264 V, Input frequency: 47 - 63 Hz

Specifications

Design
LED indicators	LAN, Status, System, WAN
Mounting type	Desktop/Rack mounting
Product colour	Black
Features
Antenna type	External
Antenna connector type	SMA
Antennas quantity	2
GPS (satellite)	Yes
Performance
Control display unit	No
Mounting type	Desktop/Rack mounting
Product colour	Black
Protocols
DHCP client	Yes
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Mobile network generation	4G
Number of concurrent sessions (max)	2048
Firewall throughput	4000 Mbit/s
3DES/AES throughput	4 Gbit/s
4G LTE category	12
Data network	LTE
Downlink/uplink speed	600/150 Mbit/s
Security
VLAN support	Yes
Access Control List (ACL)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Console port	micro USB, RJ-45
Number of console ports	2
Power
Output voltage	12 V
Output current	2.5 A
Input voltage	90 - 264 V
Input frequency	47 - 63 Hz
Power consumption (max)	25 W
Weight & dimensions
Weight	2.51 lbs (1.14 kg)
Width	7.81" (198.5 mm)
Height	1.5" (38.2 mm)
Depth	6.03" (153.1 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Technical details
Antenna type	External
Antenna connector type	SMA
GPS (satellite)	Yes
Indication
LED indicators	LAN, Status, System, WAN
Display
Control display unit	No
Antenna
Antenna type	External
Antenna connector type	SMA
Antennas quantity	2
